import pandas as pd
import numpy as np
import scipy.stats as sts
import gzip as gz
import pysam
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
import numpy as np
import scipy
import glob
from joblib import Parallel, delayed
import sys
import argparse
import plotly.express as px
import plotly.io as pio
import os
from Bio.Seq import Seq
from Bio import SeqIO
import swifter
import sys
import plotly.express as px
from Levenshtein import distance
pd.options.display.max_columns = 100
pd.options.display.max_rows = 100
import matplotlib
matplotlib.rcParams['pdf.fonttype'] = 42
matplotlib.rcParams['ps.fonttype'] = 42
from tqdm.notebook import tqdm
import pandas as pd
import numpy as np
import scipy.stats as sts
import gzip as gz
import pysam
import pandas as pd
import seaborn as sns
# import matplotlib.pyplot as plt
import numpy as np
import scipy
import glob
from joblib import Parallel, delayed
import sys
import argparse
import plotly.express as px
import plotly.io as pio
import os
from Bio.Seq import Seq
from Bio import SeqIO
import swifter
import sys
import plotly.express as px
from Levenshtein import distance
pd.options.display.max_columns = 100
pd.options.display.max_rows = 100
# import matplotlib
# matplotlib.rcParams['pdf.fonttype'] = 42
# matplotlib.rcParams['ps.fonttype'] = 42
import svgwrite
pd.options.mode.chained_assignment = None  # Turns off the warning

df = pd.read_parquet("CHANGEseqR.mis6.parquet")

df

	site	MM	control_target_seq	relative_activity_percent	variant_seq	variant_relative_activity_percent	variant_MM	activity_diff	activity_ratio	mismatch_positions	variant_mismatch_positions	variant_position	var_pos	REF	ALT	target_seq	realigned_target_seq	seq	bulged_seq	reads	on_target	off
7	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGAGACAGGTTCGG	20.008296	3	-173.089401	0.103617	[4, 19]	[4, 12, 19]	12	12	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGAGACAGGTTCGG		173.089401	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG
9	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGATCACTAGGGACAGGTTCGG	8.696374	3	-184.401323	0.045036	[4, 19]	[4, 5, 19]	5	5	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGATCACTAGGGACAGGTTCGG		184.401323	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG
10	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGTGACAGGTTCGG	2.381133	3	-190.716563	0.012331	[4, 19]	[4, 12, 19]	12	12	G	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGTGACAGGTTCGG		190.716563	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG
11	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCATTAGGGACAGGTTCGG	4.460667	3	-188.637030	0.023101	[4, 19]	[4, 8, 19]	8	8	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCATTAGGGACAGGTTCGG		188.637030	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG
12	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGAACACTAGGGACAGGTTCGG	2.885356	3	-190.212341	0.014942	[4, 19]	[4, 5, 19]	5	5	C	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGAACACTAGGGACAGGTTCGG		190.212341	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
13252726	TRAC.s1	3	GTCAGGGTTATGGATTTCTATGG	0.008117	GTCAGGGTTATGGATTTTTATGG	0.000000	4	-0.008117	0.000000	[10, 16, 20]	[10, 16, 18, 20]	18	18	C	T	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTTTATGG		0.008117	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTCTATGG
13252730	TRAC.s1	3	GTCAGGGTTATGGATTTCTATGG	0.008117	GTGAGGGTTATGGATTTCTATGG	0.000000	4	-0.008117	0.000000	[10, 16, 20]	[3, 10, 16, 20]	3	3	C	G	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTGAGGGTTATGGATTTCTATGG		0.008117	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTCTATGG
13252732	TRAC.s1	3	GTCAGGGTTATGGATTTCTATGG	0.008117	GTCAGGGTTATGGCTTTCTATGG	0.000000	4	-0.008117	0.000000	[10, 16, 20]	[10, 14, 16, 20]	14	14	A	C	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGCTTTCTATGG		0.008117	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTCTATGG
13252734	TRAC.s1	3	GTCAGGGTTATGGATTTCTATGG	0.008117	GTCAGGGTTAAGGATTTCTATGG	0.000000	4	-0.008117	0.000000	[10, 16, 20]	[10, 11, 16, 20]	11	11	T	A	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTAAGGATTTCTATGG		0.008117	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTCTATGG
13252735	TRAC.s1	3	GTCAGGGTTATGGATTTCTATGG	0.008117	GTCAGGGTAATGGATTTCTATGG	0.000000	4	-0.008117	0.000000	[10, 16, 20]	[9, 10, 16, 20]	9	9	T	A	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTAATGGATTTCTATGG		0.008117	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTCTATGG

3921277 rows × 22 columns

df = df[df.MM<=3]

df

	site	MM	control_target_seq	relative_activity_percent	variant_seq	variant_relative_activity_percent	variant_MM	activity_diff	activity_ratio	mismatch_positions	variant_mismatch_positions	variant_position	var_pos	REF	ALT	target_seq	realigned_target_seq	seq	bulged_seq	reads	on_target	off
7	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGAGACAGGTTCGG	20.008296	3	-173.089401	0.103617	[4, 19]	[4, 12, 19]	12	12	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGAGACAGGTTCGG		173.089401	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG
9	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGATCACTAGGGACAGGTTCGG	8.696374	3	-184.401323	0.045036	[4, 19]	[4, 5, 19]	5	5	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGATCACTAGGGACAGGTTCGG		184.401323	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG
10	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGTGACAGGTTCGG	2.381133	3	-190.716563	0.012331	[4, 19]	[4, 12, 19]	12	12	G	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGTGACAGGTTCGG		190.716563	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG
11	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCATTAGGGACAGGTTCGG	4.460667	3	-188.637030	0.023101	[4, 19]	[4, 8, 19]	8	8	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCATTAGGGACAGGTTCGG		188.637030	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG
12	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGAACACTAGGGACAGGTTCGG	2.885356	3	-190.212341	0.014942	[4, 19]	[4, 5, 19]	5	5	C	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGAACACTAGGGACAGGTTCGG		190.212341	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
13252726	TRAC.s1	3	GTCAGGGTTATGGATTTCTATGG	0.008117	GTCAGGGTTATGGATTTTTATGG	0.000000	4	-0.008117	0.000000	[10, 16, 20]	[10, 16, 18, 20]	18	18	C	T	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTTTATGG		0.008117	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTCTATGG
13252730	TRAC.s1	3	GTCAGGGTTATGGATTTCTATGG	0.008117	GTGAGGGTTATGGATTTCTATGG	0.000000	4	-0.008117	0.000000	[10, 16, 20]	[3, 10, 16, 20]	3	3	C	G	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTGAGGGTTATGGATTTCTATGG		0.008117	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTCTATGG
13252732	TRAC.s1	3	GTCAGGGTTATGGATTTCTATGG	0.008117	GTCAGGGTTATGGCTTTCTATGG	0.000000	4	-0.008117	0.000000	[10, 16, 20]	[10, 14, 16, 20]	14	14	A	C	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGCTTTCTATGG		0.008117	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTCTATGG
13252734	TRAC.s1	3	GTCAGGGTTATGGATTTCTATGG	0.008117	GTCAGGGTTAAGGATTTCTATGG	0.000000	4	-0.008117	0.000000	[10, 16, 20]	[10, 11, 16, 20]	11	11	T	A	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTAAGGATTTCTATGG		0.008117	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTCTATGG
13252735	TRAC.s1	3	GTCAGGGTTATGGATTTCTATGG	0.008117	GTCAGGGTAATGGATTTCTATGG	0.000000	4	-0.008117	0.000000	[10, 16, 20]	[9, 10, 16, 20]	9	9	T	A	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTAATGGATTTCTATGG		0.008117	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTCTATGG

2602927 rows × 22 columns

mm_scores={'rU:dT,12': 0.8, 'rU:dT,13': 0.692307692, 'rU:dC,5': 0.64, 'rG:dA,14': 0.26666666699999997, 'rG:dG,19': 0.448275862, 'rG:dG,18': 0.47619047600000003, 'rG:dG,15': 0.272727273, 'rG:dG,14': 0.428571429, 'rG:dG,17': 0.235294118, 'rG:dG,16': 0.0, 'rC:dC,20': 0.058823529000000006, 'rG:dT,20': 0.9375, 'rG:dG,13': 0.42105263200000004, 'rG:dG,12': 0.529411765, 'rU:dC,6': 0.571428571, 'rU:dG,14': 0.28571428600000004, 'rU:dT,18': 0.666666667, 'rA:dG,13': 0.21052631600000002, 'rA:dG,12': 0.263157895, 'rA:dG,11': 0.4, 'rA:dG,10': 0.333333333, 'rA:dA,19': 0.538461538, 'rA:dA,18': 0.5, 'rA:dG,15': 0.272727273, 'rA:dG,14': 0.214285714, 'rA:dA,15': 0.2, 'rA:dA,14': 0.533333333, 'rA:dA,17': 0.133333333, 'rA:dA,16': 0.0, 'rA:dA,11': 0.307692308, 'rA:dA,10': 0.882352941, 'rA:dA,13': 0.3, 'rA:dA,12': 0.333333333, 'rG:dA,13': 0.3, 'rG:dA,12': 0.384615385, 'rG:dA,11': 0.384615385, 'rG:dA,10': 0.8125, 'rG:dA,17': 0.25, 'rG:dA,16': 0.0, 'rG:dA,15': 0.14285714300000002, 'rG:dA,6': 0.666666667, 'rG:dG,20': 0.428571429, 'rG:dA,19': 0.666666667, 'rG:dA,18': 0.666666667, 'rU:dC,4': 0.625, 'rG:dT,12': 0.933333333, 'rG:dT,13': 0.923076923, 'rU:dG,11': 0.666666667, 'rC:dA,3': 0.6875, 'rC:dA,2': 0.9090909090000001, 'rC:dA,1': 1.0, 'rC:dA,7': 0.8125, 'rC:dA,6': 0.9285714290000001, 'rC:dA,5': 0.636363636, 'rC:dA,4': 0.8, 'rC:dA,9': 0.875, 'rC:dA,8': 0.875, 'rU:dT,6': 0.8666666670000001, 'rA:dG,20': 0.22727272699999998, 'rG:dT,18': 0.692307692, 'rU:dG,10': 0.533333333, 'rG:dT,19': 0.7142857140000001, 'rG:dA,20': 0.7, 'rC:dT,20': 0.5, 'rU:dC,2': 0.84, 'rG:dG,10': 0.4, 'rC:dA,17': 0.46666666700000003, 'rC:dA,16': 0.307692308, 'rC:dA,15': 0.066666667, 'rC:dA,14': 0.7333333329999999, 'rC:dA,13': 0.7, 'rC:dA,12': 0.538461538, 'rC:dA,11': 0.307692308, 'rC:dA,10': 0.9411764709999999, 'rG:dG,11': 0.428571429, 'rU:dC,20': 0.176470588, 'rG:dG,3': 0.384615385, 'rC:dA,19': 0.46153846200000004, 'rC:dA,18': 0.642857143, 'rU:dG,17': 0.705882353, 'rU:dG,16': 0.666666667, 'rU:dG,15': 0.272727273, 'rG:dG,2': 0.692307692, 'rU:dG,13': 0.7894736840000001, 'rU:dG,12': 0.947368421, 'rG:dA,9': 0.533333333, 'rG:dA,8': 0.625, 'rG:dA,7': 0.571428571, 'rG:dG,5': 0.7857142859999999, 'rG:dA,5': 0.3, 'rG:dA,4': 0.363636364, 'rG:dA,3': 0.5, 'rG:dA,2': 0.636363636, 'rG:dA,1': 1.0, 'rG:dG,4': 0.529411765, 'rG:dG,1': 0.7142857140000001, 'rA:dC,9': 0.666666667, 'rG:dG,7': 0.6875, 'rG:dT,5': 0.8666666670000001, 'rU:dT,20': 0.5625, 'rC:dC,15': 0.05, 'rC:dC,14': 0.0, 'rC:dC,17': 0.058823529000000006, 'rC:dC,16': 0.153846154, 'rC:dC,11': 0.25, 'rC:dC,10': 0.38888888899999996, 'rC:dC,13': 0.13636363599999998, 'rC:dC,12': 0.444444444, 'rC:dA,20': 0.3, 'rC:dC,19': 0.125, 'rC:dC,18': 0.133333333, 'rA:dA,1': 1.0, 'rA:dA,3': 0.705882353, 'rA:dA,2': 0.727272727, 'rA:dA,5': 0.363636364, 'rA:dA,4': 0.636363636, 'rA:dA,7': 0.4375, 'rA:dA,6': 0.7142857140000001, 'rA:dA,9': 0.6, 'rA:dA,8': 0.428571429, 'rU:dG,20': 0.090909091, 'rC:dC,9': 0.6190476189999999, 'rC:dC,8': 0.642857143, 'rU:dT,10': 0.857142857, 'rU:dT,11': 0.75, 'rU:dT,16': 0.9090909090000001, 'rU:dT,17': 0.533333333, 'rU:dT,14': 0.6190476189999999, 'rU:dT,15': 0.578947368, 'rC:dC,1': 0.913043478, 'rU:dT,3': 0.7142857140000001, 'rC:dC,3': 0.5, 'rC:dC,2': 0.695652174, 'rC:dC,5': 0.6, 'rC:dC,4': 0.5, 'rC:dC,7': 0.470588235, 'rC:dC,6': 0.5, 'rU:dT,4': 0.47619047600000003, 'rU:dT,8': 0.8, 'rU:dT,9': 0.9285714290000001, 'rA:dC,19': 0.375, 'rA:dC,18': 0.4, 'rA:dC,17': 0.176470588, 'rA:dC,16': 0.192307692, 'rA:dC,15': 0.65, 'rA:dC,14': 0.46666666700000003, 'rA:dC,13': 0.6521739129999999, 'rA:dC,12': 0.7222222220000001, 'rA:dC,11': 0.65, 'rA:dC,10': 0.5555555560000001, 'rU:dC,7': 0.588235294, 'rC:dT,8': 0.65, 'rC:dT,9': 0.857142857, 'rC:dT,6': 0.9285714290000001, 'rC:dT,7': 0.75, 'rC:dT,4': 0.842105263, 'rC:dT,5': 0.571428571, 'rC:dT,2': 0.727272727, 'rC:dT,3': 0.8666666670000001, 'rC:dT,1': 1.0, 'rA:dC,8': 0.7333333329999999, 'rU:dT,1': 1.0, 'rU:dC,3': 0.5, 'rU:dC,1': 0.956521739, 'rU:dT,2': 0.846153846, 'rU:dG,19': 0.275862069, 'rG:dT,14': 0.75, 'rG:dT,15': 0.9411764709999999, 'rG:dT,16': 1.0, 'rG:dT,17': 0.933333333, 'rG:dT,10': 0.933333333, 'rG:dT,11': 1.0, 'rA:dG,9': 0.571428571, 'rA:dG,8': 0.428571429, 'rA:dG,7': 0.4375, 'rA:dG,6': 0.454545455, 'rA:dG,5': 0.5, 'rA:dG,4': 0.352941176, 'rA:dG,3': 0.428571429, 'rA:dG,2': 0.7857142859999999, 'rA:dG,1': 0.857142857, 'rU:dT,5': 0.5, 'rG:dT,2': 0.846153846, 'rA:dC,3': 0.611111111, 'rA:dC,20': 0.764705882, 'rG:dT,1': 0.9, 'rG:dT,6': 1.0, 'rG:dT,7': 1.0, 'rG:dT,4': 0.9, 'rC:dT,19': 0.428571429, 'rG:dG,9': 0.538461538, 'rG:dG,8': 0.615384615, 'rG:dT,8': 1.0, 'rG:dT,9': 0.642857143, 'rU:dG,18': 0.428571429, 'rU:dT,7': 0.875, 'rG:dG,6': 0.681818182, 'rA:dA,20': 0.6, 'rU:dC,9': 0.6190476189999999, 'rA:dG,17': 0.176470588, 'rU:dC,8': 0.7333333329999999, 'rA:dG,16': 0.0, 'rA:dG,19': 0.20689655199999998, 'rG:dT,3': 0.75, 'rU:dG,3': 0.428571429, 'rU:dG,2': 0.857142857, 'rU:dG,1': 0.857142857, 'rA:dG,18': 0.19047619, 'rU:dG,7': 0.6875, 'rU:dG,6': 0.9090909090000001, 'rU:dG,5': 1.0, 'rU:dG,4': 0.647058824, 'rU:dG,9': 0.923076923, 'rU:dG,8': 1.0, 'rU:dC,19': 0.25, 'rU:dC,18': 0.333333333, 'rU:dC,13': 0.260869565, 'rU:dC,12': 0.5, 'rU:dC,11': 0.4, 'rU:dC,10': 0.5, 'rU:dC,17': 0.117647059, 'rU:dC,16': 0.346153846, 'rU:dC,15': 0.05, 'rU:dC,14': 0.0, 'rC:dT,10': 0.8666666670000001, 'rC:dT,11': 0.75, 'rC:dT,12': 0.7142857140000001, 'rC:dT,13': 0.384615385, 'rC:dT,14': 0.35, 'rC:dT,15': 0.222222222, 'rC:dT,16': 1.0, 'rC:dT,17': 0.46666666700000003, 'rC:dT,18': 0.538461538, 'rA:dC,2': 0.8, 'rA:dC,1': 1.0, 'rA:dC,7': 0.705882353, 'rA:dC,6': 0.7142857140000001, 'rA:dC,5': 0.72, 'rA:dC,4': 0.625, 'rU:dT,19': 0.28571428600000004}
pam_scores={'AA': 0.0, 'AC': 0.0, 'GT': 0.016129031999999998, 'AG': 0.25925925899999996, 'CC': 0.0, 'CA': 0.0, 'CG': 0.107142857, 'TT': 0.0, 'GG': 1.0, 'GC': 0.022222222000000003, 'AT': 0.0, 'GA': 0.06944444400000001, 'TG': 0.038961038999999996, 'TA': 0.0, 'TC': 0.0, 'CT': 0.0}

def reverse_complement(seq):
  base_rev_comp = {'A': 'T', 'C': 'G', 'G': 'C', 'T': 'A','U':'A'}
  rc_seq = ''
  for base in seq:
    rc_seq += base_rev_comp[base]
  return rc_seq[::-1]


def calc_cfd(wt,sg,pam):
  score = 1
  sg = sg.replace('T','U')
  wt = wt.replace('T','U')
  s_list = list(sg)
  wt_list = list(wt)
  for i,sl in enumerate(s_list):
    if wt_list[i] == sl:
      score *= 1
    else:
      key = 'r' + wt_list[i] + ':d' + reverse_complement(sl) + ',' + str(i+1)
      score *= mm_scores[key]
  score *= pam_scores[pam]
  return 100 * score

def per_row_cfd(r):
    ref_PAM = r.control_target_seq[-2:]
    alt_PAM = r.variant_seq[-2:]
    ref = calc_cfd(r.on_target[:20],r.control_target_seq[:20],ref_PAM)
    alt = calc_cfd(r.on_target[:20],r.variant_seq[:20],alt_PAM)
    return alt-ref
df['delta_CFD'] = df.swifter.apply(per_row_cfd,axis=1)

df

	site	MM	control_target_seq	relative_activity_percent	variant_seq	variant_relative_activity_percent	variant_MM	activity_diff	activity_ratio	mismatch_positions	variant_mismatch_positions	variant_position	var_pos	REF	ALT	target_seq	realigned_target_seq	seq	bulged_seq	reads	on_target	off	delta_CFD
7	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGAGACAGGTTCGG	20.008296	3	-173.089401	0.103617	[4, 19]	[4, 12, 19]	12	12	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGAGACAGGTTCGG		173.089401	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-3.230769
9	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGATCACTAGGGACAGGTTCGG	8.696374	3	-184.401323	0.045036	[4, 19]	[4, 5, 19]	5	5	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGATCACTAGGGACAGGTTCGG		184.401323	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-17.622378
10	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGTGACAGGTTCGG	2.381133	3	-190.716563	0.012331	[4, 19]	[4, 12, 19]	12	12	G	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGTGACAGGTTCGG		190.716563	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-29.822485
11	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCATTAGGGACAGGTTCGG	4.460667	3	-188.637030	0.023101	[4, 19]	[4, 8, 19]	8	8	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCATTAGGGACAGGTTCGG		188.637030	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-6.057692
12	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGAACACTAGGGACAGGTTCGG	2.885356	3	-190.212341	0.014942	[4, 19]	[4, 5, 19]	5	5	C	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGAACACTAGGGACAGGTTCGG		190.212341	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-20.769231
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
13252726	TRAC.s1	3	GTCAGGGTTATGGATTTCTATGG	0.008117	GTCAGGGTTATGGATTTTTATGG	0.000000	4	-0.008117	0.000000	[10, 16, 20]	[10, 16, 18, 20]	18	18	C	T	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTTTATGG		0.008117	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTCTATGG	0.000000
13252730	TRAC.s1	3	GTCAGGGTTATGGATTTCTATGG	0.008117	GTGAGGGTTATGGATTTCTATGG	0.000000	4	-0.008117	0.000000	[10, 16, 20]	[3, 10, 16, 20]	3	3	C	G	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTGAGGGTTATGGATTTCTATGG		0.008117	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTCTATGG	0.000000
13252732	TRAC.s1	3	GTCAGGGTTATGGATTTCTATGG	0.008117	GTCAGGGTTATGGCTTTCTATGG	0.000000	4	-0.008117	0.000000	[10, 16, 20]	[10, 14, 16, 20]	14	14	A	C	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGCTTTCTATGG		0.008117	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTCTATGG	0.000000
13252734	TRAC.s1	3	GTCAGGGTTATGGATTTCTATGG	0.008117	GTCAGGGTTAAGGATTTCTATGG	0.000000	4	-0.008117	0.000000	[10, 16, 20]	[10, 11, 16, 20]	11	11	T	A	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTAAGGATTTCTATGG		0.008117	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTCTATGG	0.000000
13252735	TRAC.s1	3	GTCAGGGTTATGGATTTCTATGG	0.008117	GTCAGGGTAATGGATTTCTATGG	0.000000	4	-0.008117	0.000000	[10, 16, 20]	[9, 10, 16, 20]	9	9	T	A	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTAATGGATTTCTATGG		0.008117	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTATGGATTTCTATGG	0.000000

2602927 rows × 23 columns

df = pd.read_csv("changeseq_variant_activity_mm6_20241213.csv")
df = df[df.MM<df.variant_MM]
df.mismatch_positions = df.mismatch_positions.apply(eval)
df['var_pos'] = df['variant_position']
df['REF'] = df.swifter.apply(lambda r:r.control_target_seq[r.var_pos-1],axis=1)
df['ALT'] = df.swifter.apply(lambda r:r.variant_seq[r.var_pos-1],axis=1)
gRNA = {'AAVS1.s14': 'GGGGCCACTAGGGACAGGATNGG',
        'CTLA4.s9': 'GGACTGAGGGCCATGGACACNGG',
        'TRAC.s1': 'GTCAGGGTTCTGGATATCTGNGG',
        'LAG3.s9': 'GAAGGCTGAGATCCTGGAGGNGG',
        'CXCR4.s8': 'GTCCCCTGAGCCCATTTCCTNGG',
        'CCR5.s8': 'GGACAGTAAGAAGGAAAAACNGG'}

df['target_seq'] = df.site.map(gRNA)

df['realigned_target_seq'] = df.target_seq
df['seq'] = df.variant_seq
df['bulged_seq'] = ""
df['reads'] = df.activity_diff.abs()

df = df.drop(['Unnamed: 0'],axis=1)
df['on_target'] = df.target_seq
df['off'] = df.control_target_seq
def per_row_cfd(r):
    ref_PAM = r.control_target_seq[-2:]
    alt_PAM = r.variant_seq[-2:]
    ref = calc_cfd(r.on_target[:20],r.control_target_seq[:20],ref_PAM)
    alt = calc_cfd(r.on_target[:20],r.variant_seq[:20],alt_PAM)
    return alt-ref
df['delta_CFD'] = df.swifter.apply(per_row_cfd,axis=1)
df.to_parquet(f'CHANGEseqR.mis6.all_diff.parquet', engine='pyarrow')

df = pd.read_parquet("CHANGEseqR.mis6.all_diff.parquet")

df.head()

	site	MM	control_target_seq	relative_activity_percent	variant_seq	variant_relative_activity_percent	variant_MM	activity_diff	activity_ratio	mismatch_positions	variant_mismatch_positions	variant_position	var_pos	REF	ALT	target_seq	realigned_target_seq	seq	bulged_seq	reads	on_target	off	delta_CFD
7	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGAGACAGGTTCGG	20.008296	3	-173.089401	0.103617	[4, 19]	[4, 12, 19]	12	12	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGAGACAGGTTCGG		173.089401	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-3.230769
9	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGATCACTAGGGACAGGTTCGG	8.696374	3	-184.401323	0.045036	[4, 19]	[4, 5, 19]	5	5	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGATCACTAGGGACAGGTTCGG		184.401323	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-17.622378
10	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGTGACAGGTTCGG	2.381133	3	-190.716563	0.012331	[4, 19]	[4, 12, 19]	12	12	G	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGTGACAGGTTCGG		190.716563	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-29.822485
11	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCATTAGGGACAGGTTCGG	4.460667	3	-188.637030	0.023101	[4, 19]	[4, 8, 19]	8	8	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCATTAGGGACAGGTTCGG		188.637030	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-6.057692
12	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGAACACTAGGGACAGGTTCGG	2.885356	3	-190.212341	0.014942	[4, 19]	[4, 5, 19]	5	5	C	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGAACACTAGGGACAGGTTCGG		190.212341	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-20.769231

def per_row_cfd_ratio(r):
    ref_PAM = r.control_target_seq[-2:]
    alt_PAM = r.variant_seq[-2:]
    ref = calc_cfd(r.on_target[:20],r.control_target_seq[:20],ref_PAM)
    alt = calc_cfd(r.on_target[:20],r.variant_seq[:20],alt_PAM)
    return (alt+1)/(ref+1)
df['ratio_CFD'] = df.swifter.apply(per_row_cfd_ratio,axis=1)

def activity_ratio2(r):
    return (r.variant_relative_activity_percent+1)/(r.relative_activity_percent+1)
df['ratio_activity'] = df.swifter.apply(activity_ratio2,axis=1)

df['ratio_CFD_log2'] = df['ratio_CFD'].apply(np.log2)
df['ratio_activity_log2'] = df['ratio_activity'].apply(np.log2)

df.head()

	site	MM	control_target_seq	relative_activity_percent	variant_seq	variant_relative_activity_percent	variant_MM	activity_diff	activity_ratio	mismatch_positions	variant_mismatch_positions	variant_position	var_pos	REF	ALT	target_seq	realigned_target_seq	seq	bulged_seq	reads	on_target	off	delta_CFD	ratio_activity	ratio_CFD	ratio_CFD_log2	ratio_activity_log2
7	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGAGACAGGTTCGG	20.008296	3	-173.089401	0.103617	[4, 19]	[4, 12, 19]	12	12	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGAGACAGGTTCGG		173.089401	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-3.230769	0.108236	0.934681	-0.097454	-3.207752
9	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGATCACTAGGGACAGGTTCGG	8.696374	3	-184.401323	0.045036	[4, 19]	[4, 5, 19]	5	5	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGATCACTAGGGACAGGTTCGG		184.401323	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-17.622378	0.049956	0.643716	-0.635505	-4.323194
10	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGTGACAGGTTCGG	2.381133	3	-190.716563	0.012331	[4, 19]	[4, 12, 19]	12	12	G	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGTGACAGGTTCGG		190.716563	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-29.822485	0.017420	0.397057	-1.332582	-5.843132
11	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCATTAGGGACAGGTTCGG	4.460667	3	-188.637030	0.023101	[4, 19]	[4, 8, 19]	8	8	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCATTAGGGACAGGTTCGG		188.637030	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-6.057692	0.028134	0.877527	-0.188484	-5.151562
12	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGAACACTAGGGACAGGTTCGG	2.885356	3	-190.212341	0.014942	[4, 19]	[4, 5, 19]	5	5	C	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGAACACTAGGGACAGGTTCGG		190.212341	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-20.769231	0.020018	0.580093	-0.785643	-5.642592

df['activity_ratio_log2'] = df.activity_ratio.apply(np.log2)

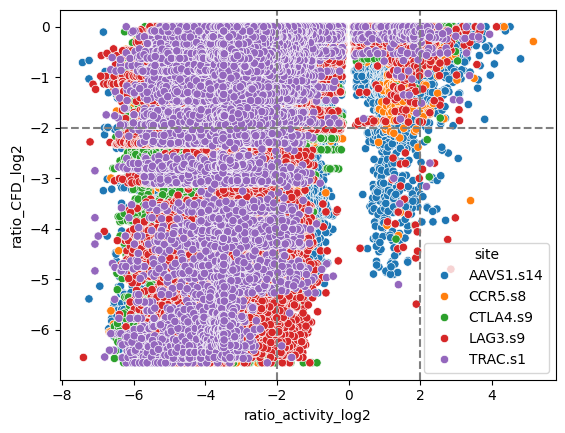

df[['ratio_activity_log2','ratio_CFD_log2']].corr()

	ratio_activity_log2	ratio_CFD_log2
ratio_activity_log2	1.000000	0.258499
ratio_CFD_log2	0.258499	1.000000

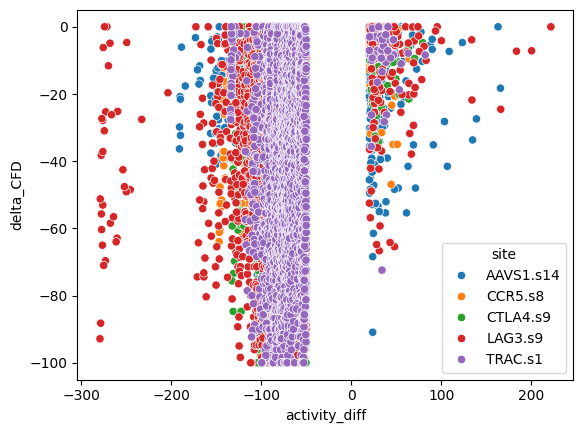

df[['activity_diff','delta_CFD']].corr()

	activity_diff	delta_CFD
activity_diff	1.000000	0.362286
delta_CFD	0.362286	1.000000

df.activity_diff.describe()

count    5.052996e+06
mean    -2.969259e+00
std      8.534274e+00
min     -2.791489e+02
25%     -2.984412e+00
50%     -8.731075e-01
75%     -6.343969e-02
max      2.216153e+02
Name: activity_diff, dtype: float64

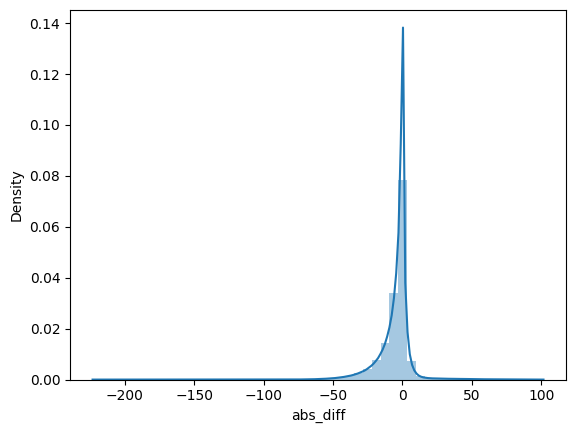

sns.violinplot(df.activity_diff)
plt.yscale("log")

df.head()

	site	MM	control_target_seq	relative_activity_percent	variant_seq	variant_relative_activity_percent	variant_MM	activity_diff	activity_ratio	mismatch_positions	variant_mismatch_positions	variant_position	var_pos	REF	ALT	target_seq	realigned_target_seq	seq	bulged_seq	reads	on_target	off	delta_CFD	abs_diff	ratio_CFD	ratio_activity	ratio_CFD_log2	ratio_activity_log2
7	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGAGACAGGTTCGG	20.008296	3	-173.089401	0.103617	[4, 19]	[4, 12, 19]	12	12	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGAGACAGGTTCGG		173.089401	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-3.230769	96.769231	0.934681	0.108236	-0.097454	-3.207752
9	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGATCACTAGGGACAGGTTCGG	8.696374	3	-184.401323	0.045036	[4, 19]	[4, 5, 19]	5	5	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGATCACTAGGGACAGGTTCGG		184.401323	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-17.622378	82.377622	0.643716	0.049956	-0.635505	-4.323194
10	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGTGACAGGTTCGG	2.381133	3	-190.716563	0.012331	[4, 19]	[4, 12, 19]	12	12	G	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGTGACAGGTTCGG		190.716563	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-29.822485	70.177515	0.397057	0.017420	-1.332582	-5.843132
11	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCATTAGGGACAGGTTCGG	4.460667	3	-188.637030	0.023101	[4, 19]	[4, 8, 19]	8	8	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCATTAGGGACAGGTTCGG		188.637030	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-6.057692	93.942308	0.877527	0.028134	-0.188484	-5.151562
12	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGAACACTAGGGACAGGTTCGG	2.885356	3	-190.212341	0.014942	[4, 19]	[4, 5, 19]	5	5	C	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGAACACTAGGGACAGGTTCGG		190.212341	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-20.769231	79.230769	0.580093	0.020018	-0.785643	-5.642592

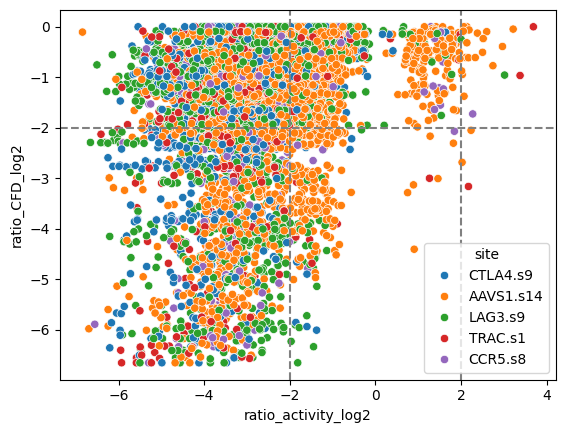

def define_suprising_category(r):
    if abs(r.activity_diff)<10:
        return "Skip"
    if r.ratio_CFD_log2<=-2:
        if r.ratio_activity_log2<=-2:
            return "Captured_high_impact"
        elif    -2<r.ratio_activity_log2<2:
            return "Surprising_low_impact"
        else:
            return "Surprising_increase"
    else:
        if r.ratio_activity_log2<=-2:
            return "Surprising_high_impact"
        elif    -2<r.ratio_activity_log2<2:
            return "Captured_low_impact"
        else:
            return "Surprising_increase"
df['suprising_category'] = df.swifter.apply(define_suprising_category,axis=1)

df.ratio_activity_log2.describe()

count    5.052996e+06
mean    -7.236468e-01
std      9.448308e-01
min     -7.424908e+00
25%     -1.207113e+00
50%     -5.389062e-01
75%     -5.889734e-02
max      5.155138e+00
Name: ratio_activity_log2, dtype: float64

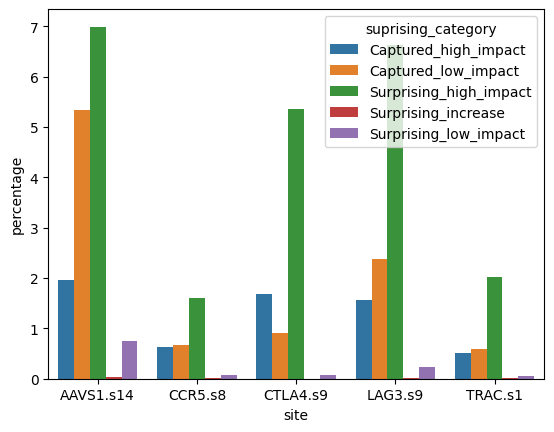

df.groupby(['site','suprising_category']).size()

site       suprising_category
AAVS1.s14  Captured_high_impact        17150
           Captured_low_impact         47419
           Skip                      1257750
           Surprising_high_impact      68822
           Surprising_increase           644
           Surprising_low_impact        6313
CCR5.s8    Captured_high_impact         3536
           Captured_low_impact          3716
           Skip                       815377
           Surprising_high_impact       9468
           Surprising_increase            77
           Surprising_low_impact         419
CTLA4.s9   Captured_high_impact         8259
           Captured_low_impact          4388
           Skip                       680830
           Surprising_high_impact      26173
           Surprising_increase            17
           Surprising_low_impact         346
LAG3.s9    Captured_high_impact        10089
           Captured_low_impact         15353
           Skip                       935553
           Surprising_high_impact      42830
           Surprising_increase           101
           Surprising_low_impact        1464
TRAC.s1    Captured_high_impact         3635
           Captured_low_impact          4145
           Skip                      1074562
           Surprising_high_impact      14106
           Surprising_increase            55
           Surprising_low_impact         399
dtype: int64

df_3 = df[df.MM<=3]

import pandas as pd
import numpy as np
import scipy.stats as sts
import gzip as gz
import pysam
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
import numpy as np
import scipy
import glob
from joblib import Parallel, delayed
import sys
import argparse
import plotly.express as px
import plotly.io as pio
import os
from Bio.Seq import Seq
from Bio import SeqIO
import swifter
import sys
import plotly.express as px
from Levenshtein import distance
pd.options.display.max_columns = 100
pd.options.display.max_rows = 100
import matplotlib
matplotlib.rcParams['pdf.fonttype'] = 42
matplotlib.rcParams['ps.fonttype'] = 42
from tqdm.notebook import tqdm
import pandas as pd
import numpy as np
import scipy.stats as sts
import gzip as gz
import pysam
import pandas as pd
import seaborn as sns
# import matplotlib.pyplot as plt
import numpy as np
import scipy
import glob
from joblib import Parallel, delayed
import sys
import argparse
import plotly.express as px
import plotly.io as pio
import os
from Bio.Seq import Seq
from Bio import SeqIO
import swifter
import sys
import plotly.express as px
from Levenshtein import distance
pd.options.display.max_columns = 100
pd.options.display.max_rows = 100
# import matplotlib
# matplotlib.rcParams['pdf.fonttype'] = 42
# matplotlib.rcParams['ps.fonttype'] = 42
import svgwrite
pd.options.mode.chained_assignment = None  # Turns off the warning

boxWidth = 10
box_size = 15
v_spacing = 3

# colors = {'G': '#F5F500', 'A': '#FF5454', 'T': '#00D118', 'C': '#26A8FF', 'N': '#B3B3B3', 'R': '#B3B3B3', '-': '#FFFFFF'}
colors = {'G': '#F5F500', 'A': '#FF5454', 'T': '#00D118', 'C': '#26A8FF', 'N': '#B3B3B3', 'R': '#B3B3B3', '-': '#B3B3B3'}
for c in ['Y','S','W','K','M','B','D','H','V','.']:
    colors[c] = "#B3B3B3"

def find_PAM(seq,PAM):
    PAM_index=20
    return PAM_index


def is_transition(base1, base2):
    """Check if the mismatch is a transition (purine ↔ purine or pyrimidine ↔ pyrimidine)."""
    purines = {'A', 'G'}
    pyrimidines = {'C', 'T'}
    return ((base1 in purines and base2 in purines) or
            (base1 in pyrimidines and base2 in pyrimidines))
def visualizeOfftargets_variant_effect(offtargets, target_seq, outfile, title, PAM):
    # Initiate canvas
    genome=None
    total_seq = len(offtargets)
    dwg = svgwrite.Drawing(outfile + '.svg', profile='full', size=(box_size*25+200, total_seq*(box_size + 1)*2+100))
    if title is not None:
        # Define top and left margins
        x_offset = 20
        y_offset = 50
        dwg.add(dwg.text(title, insert=(x_offset, 30), style="font-size:20px; font-family:Helvetica"))
    else:
        # Define top and left margins
        x_offset = 20
        y_offset = 20

    tick_locations = []
    tick_legend = []
    # PAM_index = target_seq.index(PAM)
    PAM_index = find_PAM(target_seq,PAM)
    count = 0
    for i in range(PAM_index,0,-1):
        count = count+1
        if count % 10 == 0:
            tick_legend.append(count)
            # print (count,i)
            tick_locations.append(i)
    if len(PAM)>=3:
        tick_legend+=['P', 'A', 'M']+['-']*(len(PAM)-3)
    else:
        tick_legend+=["PAM"]+['-']*(len(PAM)-3)
    tick_locations+=range(PAM_index+1,len(target_seq)+1)
    if PAM_index == 0:
        tick_legend = []
        tick_locations = []
        tick_legend+=['P', 'A', 'M']+['-']*(len(PAM)-3)
        tick_locations+=range(1,len(PAM)+1)
        count = 0
        for i in range(len(PAM)+1,len(target_seq)+1):
            count = count+1
            if count % 10 == 0 or count == 1:
                tick_legend.append(count)
                # print (count,i)
                tick_locations.append(i)
    # print (zip(tick_locations, tick_legend))
    for x,y in zip(tick_locations, tick_legend):
        dwg.add(dwg.text(y, insert=(x_offset + (x - 1) * box_size + 2, y_offset - 2), style="font-size:10px; font-family:Helvetica"))

    # Draw reference sequence row
    for i, c in enumerate(target_seq):
        y = y_offset
        x = x_offset + i * box_size
        dwg.add(dwg.rect((x, y), (box_size, box_size), fill=colors[c]))
        dwg.add(dwg.text(c, insert=(x + 3, y + box_size - 3), fill='black', style="font-size:15px; font-family:Helvetica"))

    dwg.add(dwg.text('Variant Effect', insert=(x_offset + box_size * len(target_seq) + 16, y_offset + box_size - 3), style="font-size:15px; font-family:Helvetica"))
    # dwg.add(dwg.text('Mismatches', insert=(box_size * (len(target_seq) + 1) + 150, y_offset + box_size - 3), style="font-size:15px; font-family:Helvetica"))
    # dwg.add(dwg.text('Coordinates', insert=(box_size * (len(target_seq) + 1) + 250, y_offset + box_size - 3), style="font-size:15px; font-family:Helvetica"))
    if genome!=None:
        dwg.add(dwg.text('Annotation', insert=(box_size * (len(target_seq) + 1) + 500, y_offset + box_size - 3), style="font-size:15px; font-family:Helvetica"))

    # Draw aligned sequence rows
    y_offset += 0  # leave some extra space after the reference row
    line_number = 0  # keep track of plotted sequences



    for j, seq in enumerate(offtargets):
        realigned_target_seq = offtargets[j]['realigned_target_seq']
        realigned_target_seq = list(realigned_target_seq)
        realigned_target_seq[-3]=="N"
        realigned_target_seq = "".join(realigned_target_seq)

        no_bulge_offtarget_sequence = offtargets[j]['seq']
        bulge_offtarget_sequence = offtargets[j]['bulged_seq']
        target_seq = offtargets[j]['target_seq']
        target_seq = list(target_seq)
        target_seq[-3]="N"
        # print (target_seq)
        target_seq = "".join(target_seq)
        # print (target_seq)
        REF = offtargets[j]['REF']
        try:
            strand = offtargets[j]['strand']
        except:
            strand = "+"
        ALT = offtargets[j]['ALT']
        var_pos = offtargets[j]['var_pos']


        if no_bulge_offtarget_sequence != '':
            k = 0
            line_number += 2
            y = y_offset + line_number * box_size
            for i, (c, r) in enumerate(zip(no_bulge_offtarget_sequence, target_seq)):
                x = x_offset + k * box_size
                if var_pos == i+1:
                    # print (seq['coord'],i,var_pos)
                    if strand == "-":
                        REF = revcomp(REF)
                        ALT = revcomp(ALT)
                    tmp = box_size/2
                    # dwg.add(dwg.rect((x+1, tmp + y), (box_size, box_size*2), fill="grey",fill_opacity=0.2, stroke="black", stroke_width=1))
                    if r!=REF:
                        dwg.add(dwg.rect((x, 3 * tmp + y-box_size), (box_size, box_size), fill=colors[REF],fill_opacity=0.99))
                    dwg.add(dwg.text(REF, insert=(x + 3, 3 * tmp + y - 3), fill='black', style="font-size:15px; font-family:Helvetica"))
                    if r!=ALT:
                        dwg.add(dwg.rect((x, 5 * tmp + y-box_size), (box_size, box_size), fill=colors[ALT],fill_opacity=0.99))
                    dwg.add(dwg.text(ALT, insert=(x + 3, 5 * tmp + y - 3), fill='black', style="font-size:15px; font-family:Helvetica;font-weight:bold"))

                if r == '-':
                    if 0 < k < len(target_seq):
                        x = x_offset + (k - 0.25) * box_size
                        dwg.add(dwg.rect((x, box_size * 1.4 + y), (box_size*0.6, box_size*0.6), fill=colors[c]))
                        dwg.add(dwg.text(c, insert=(x+1, 2 * box_size + y - 2), fill='black', style="font-size:10px; font-family:Helvetica"))
                elif c == r:
                    if var_pos != i+1:
                        # dwg.add(dwg.text(".", insert=(x + 4.5, 2 * box_size + y - 4), fill='black', style="font-size:20px; font-family:Helvetica;font-weight:bold"))
                        dwg.add(dwg.text(".", insert=(x + 5.5, 1.75 * box_size + y-3), fill='black', style="font-size:20px; font-family:Helvetica;font-weight:bold"))
                    k += 1
                elif r == 'N':
                    # dwg.add(dwg.text(c, insert=(x + 3, 2 * box_size + y - 3), fill='black', style="font-size:15px; font-family:Helvetica"))
                    dwg.add(dwg.text(".", insert=(x + 5.5, 1.75 * box_size + y-3), fill='black', style="font-size:20px; font-family:Helvetica;font-weight:bold"))
                    k += 1
                else:
                    if var_pos != i+1:
                        # if is_transition(r, c):
                        #     dwg.add(dwg.rect((x, box_size + y), (box_size, box_size), fill="#ce3bff"))
                        # else:
                        #     dwg.add(dwg.rect((x, box_size + y), (box_size, box_size), fill="#fa9d46"))
                        dwg.add(dwg.rect((x, box_size + y), (box_size, box_size), fill=colors[c]))
                    k += 1
        if bulge_offtarget_sequence != '':
            k = 0
            line_number += 2
            y = y_offset + line_number * box_size
            for i, (c, r) in enumerate(zip(bulge_offtarget_sequence, realigned_target_seq)):
                x = x_offset + k * box_size
                if var_pos == i+1:
                    # print (seq['coord'],i,var_pos)
                    if strand == "-":
                        REF = revcomp(REF)
                        ALT = revcomp(ALT)
                    tmp = box_size/2
                    # dwg.add(dwg.rect((x+1, tmp + y), (box_size, box_size*2), fill="grey",fill_opacity=0.2, stroke="black", stroke_width=1))
                    if r!=REF:
                        dwg.add(dwg.rect((x, 3 * tmp + y-box_size), (box_size, box_size), fill=colors[REF],fill_opacity=0.99))
                    dwg.add(dwg.text(REF, insert=(x + 3, 3 * tmp + y - 3), fill='black', style="font-size:15px; font-family:Helvetica;font-weight:bold"))
                    if r!=ALT:
                        dwg.add(dwg.rect((x, 5 * tmp + y-box_size), (box_size, box_size), fill=colors[ALT],fill_opacity=0.99))
                    dwg.add(dwg.text(ALT, insert=(x + 3, 5 * tmp + y - 3), fill='black', style="font-size:15px; font-family:Helvetica;font-weight:bold"))

                if r == '-':
                    if 0 < k < len(realigned_target_seq):
                        x = x_offset + (k - 0.25) * box_size
                        dwg.add(dwg.rect((x, box_size * 1.4 + y), (box_size*0.6, box_size*0.6), fill=colors[c]))
                        dwg.add(dwg.text(c, insert=(x+1, 2 * box_size + y - 2), fill='black', style="font-size:10px; font-family:Helvetica"))
                elif c == r:
                    dwg.add(dwg.text(".", insert=(x + 5.5, 1.75 * box_size + y-3), fill='black', style="font-size:20px; font-family:Helvetica;font-weight:bold"))
                    k += 1
                elif r == 'N':
                    dwg.add(dwg.text(c, insert=(x + 3, 2 * box_size + y - 3), fill='black', style="font-size:15px; font-family:Helvetica"))
                    k += 1
                else:
                    if var_pos != i+1:
                        if is_transition(r, c):
                            dwg.add(dwg.rect((x, box_size + y), (box_size, box_size), fill="#ce3bff"))
                        else:
                            dwg.add(dwg.rect((x, box_size + y), (box_size, box_size), fill="#fa9d46"))
                    k += 1

        if no_bulge_offtarget_sequence == '' or bulge_offtarget_sequence == '':
            reads_text = dwg.text(seq['reads'], insert=(box_size * (len(target_seq) + 1) + 20, y_offset + box_size * (line_number + 2) - 2),
                                  fill='black', style="font-size:15px; font-family:Helvetica")
            dwg.add(reads_text)

            # Calculate the width of the horizontal bar based on read count
            # max_bar_width = 100  # Set a maximum width for the bar
            # bar_width = (seq['reads'] / 50) * max_bar_width  # Scale bar width by read count
            # bar_height = 20  # Fixed height for each horizontal bar

            # Position the bar beside the text
            # bar_x = box_size * (len(target_seq) + 1) + 50  # Adjust position to be beside the text
            # bar_y = y_offset + box_size * (line_number + 2)- bar_height

            # Draw the horizontal bar plot as a rectangle
            # bar = dwg.rect(
                # insert=(bar_x, bar_y),
                # size=(bar_width, bar_height),
                # fill="blue"
            # )
            # dwg.add(bar)


            if genome!= None:
                annot_text = dwg.text(seq['annot'], insert=(box_size * (len(target_seq) + 1) + 500, y_offset + box_size * (line_number + 2) - 2),
                                      fill='black', style="font-size:15px; font-family:Helvetica")
                dwg.add(annot_text)
        else:
            reads_text = dwg.text(str(seq['reads']), insert=(box_size * (len(target_seq) + 1) + 20, y_offset + box_size * (line_number + 1) + 5),
                                  fill='black', style="font-size:15px; font-family:Helvetica")
            dwg.add(reads_text)
            if genome!= None:
                annot_text = dwg.text(seq['annot'], insert=(box_size * (len(target_seq) + 1) + 500, y_offset + box_size * (line_number + 1) + 5),
                                      fill='black', style="font-size:15px; font-family:Helvetica")
                dwg.add(annot_text)
            reads_text02 = dwg.text(u"\u007D", insert=(box_size * (len(target_seq) + 1) + 7, y_offset + box_size * (line_number + 1) + 5),
                                  fill='black', style="font-size:23px; font-family:Helvetica")
            dwg.add(reads_text02)
    dwg.save()
# offtargets=[r.to_dict() for i,r in low.sample(n=10).sort_values("reads",ascending=False).iterrows()]
# visualizeOfftargets_variant_effect(offtargets,"AGTGCTTGAGCCCATTTCCTNGG", f"CHANGEseqR.MM{s}", f"CHANGEseqR.MM{s}", "NGG")

import pandas as pd
import numpy as np
import scipy.stats as sts
import gzip as gz
import pysam
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
import numpy as np
import scipy
import glob
from joblib import Parallel, delayed
import sys
import argparse
import plotly.express as px
import plotly.io as pio
import os
from Bio.Seq import Seq
from Bio import SeqIO
import swifter
import sys
import plotly.express as px
from Levenshtein import distance
pd.options.display.max_columns = 100
pd.options.display.max_rows = 100
import matplotlib
matplotlib.rcParams['pdf.fonttype'] = 42
matplotlib.rcParams['ps.fonttype'] = 42
from tqdm.notebook import tqdm
import pandas as pd
import numpy as np
import scipy.stats as sts
import gzip as gz
import pysam
import pandas as pd
import seaborn as sns
# import matplotlib.pyplot as plt
import numpy as np
import scipy
import glob
from joblib import Parallel, delayed
import sys
import argparse
import plotly.express as px
import plotly.io as pio
import os
from Bio.Seq import Seq
from Bio import SeqIO
import swifter
import sys
import plotly.express as px
from Levenshtein import distance
pd.options.display.max_columns = 100
pd.options.display.max_rows = 100
# import matplotlib
# matplotlib.rcParams['pdf.fonttype'] = 42
# matplotlib.rcParams['ps.fonttype'] = 42
import svgwrite
pd.options.mode.chained_assignment = None  # Turns off the warning

boxWidth = 10
box_size = 15
v_spacing = 3

# colors = {'G': '#F5F500', 'A': '#FF5454', 'T': '#00D118', 'C': '#26A8FF', 'N': '#B3B3B3', 'R': '#B3B3B3', '-': '#FFFFFF'}
colors = {'G': '#F5F500', 'A': '#FF5454', 'T': '#00D118', 'C': '#26A8FF', 'N': '#B3B3B3', 'R': '#B3B3B3', '-': '#B3B3B3'}
for c in ['Y','S','W','K','M','B','D','H','V','.']:
    colors[c] = "#B3B3B3"

def find_PAM(seq,PAM):
    PAM_index=20
    return PAM_index


def is_transition(base1, base2):
    """Check if the mismatch is a transition (purine ↔ purine or pyrimidine ↔ pyrimidine)."""
    purines = {'A', 'G'}
    pyrimidines = {'C', 'T'}
    return ((base1 in purines and base2 in purines) or
            (base1 in pyrimidines and base2 in pyrimidines))
def visualizeOfftargets_seqvis_reads(offtargets, target_seq, outfile, title, PAM):
    # Initiate canvas
    genome=None
    total_seq = len(offtargets)
    dwg = svgwrite.Drawing(outfile + '.svg', profile='full', size=(box_size*25+200, total_seq*(box_size + 1)*2+100))
    if title is not None:
        # Define top and left margins
        x_offset = 20
        y_offset = 50
        dwg.add(dwg.text(title, insert=(x_offset, 30), style="font-size:20px; font-family:Courier"))
    else:
        # Define top and left margins
        x_offset = 20
        y_offset = 20

    tick_locations = []
    tick_legend = []
    # PAM_index = target_seq.index(PAM)
    PAM_index = find_PAM(target_seq,PAM)
    count = 0
    for i in range(PAM_index,0,-1):
        count = count+1
        if count % 10 == 0:
            tick_legend.append(count)
            # print (count,i)
            tick_locations.append(i)
    if len(PAM)>=3:
        tick_legend+=['P', 'A', 'M']+['-']*(len(PAM)-3)
    else:
        tick_legend+=["PAM"]+['-']*(len(PAM)-3)
    tick_locations+=range(PAM_index+1,len(target_seq)+1)
    if PAM_index == 0:
        tick_legend = []
        tick_locations = []
        tick_legend+=['P', 'A', 'M']+['-']*(len(PAM)-3)
        tick_locations+=range(1,len(PAM)+1)
        count = 0
        for i in range(len(PAM)+1,len(target_seq)+1):
            count = count+1
            if count % 10 == 0 or count == 1:
                tick_legend.append(count)
                # print (count,i)
                tick_locations.append(i)
    # print (zip(tick_locations, tick_legend))
    for x,y in zip(tick_locations, tick_legend):
        dwg.add(dwg.text(y, insert=(x_offset + (x - 1) * box_size + 2, y_offset - 2), style="font-size:10px; font-family:Courier"))

    # Draw reference sequence row
    for i, c in enumerate(target_seq):
        y = y_offset
        x = x_offset + i * box_size
        dwg.add(dwg.rect((x, y), (box_size, box_size), fill=colors[c]))
        dwg.add(dwg.text(c, insert=(x + 3, y + box_size - 3), fill='black', style="font-size:10px; font-family:Courier"))

    dwg.add(dwg.text('User given info', insert=(x_offset + box_size * len(target_seq) + 16, y_offset + box_size - 3), style="font-size:10px; font-family:Courier"))
    # dwg.add(dwg.text('Mismatches', insert=(box_size * (len(target_seq) + 1) + 150, y_offset + box_size - 3), style="font-size:10px; font-family:Courier"))
    # dwg.add(dwg.text('Coordinates', insert=(box_size * (len(target_seq) + 1) + 250, y_offset + box_size - 3), style="font-size:10px; font-family:Courier"))
    if genome!=None:
        dwg.add(dwg.text('Annotation', insert=(box_size * (len(target_seq) + 1) + 500, y_offset + box_size - 3), style="font-size:10px; font-family:Courier"))

    # Draw aligned sequence rows
    y_offset += 0  # leave some extra space after the reference row
    line_number = 0  # keep track of plotted sequences



    for j, seq in enumerate(offtargets):
        realigned_target_seq = offtargets[j]['realigned_target_seq']
        realigned_target_seq = list(realigned_target_seq)
        realigned_target_seq[-3]=="N"
        realigned_target_seq = "".join(realigned_target_seq)

        no_bulge_offtarget_sequence = offtargets[j]['seq']
        bulge_offtarget_sequence = offtargets[j]['bulged_seq']
        target_seq = offtargets[j]['target_seq']
        target_seq = list(target_seq)
        target_seq[-3]="N"
        # print (target_seq)
        target_seq = "".join(target_seq)
        # print (target_seq)
        # REF = offtargets[j]['REF']
        # try:
        #     strand = offtargets[j]['strand']
        # except:
        #     strand = "+"
        # ALT = offtargets[j]['ALT']
        # var_pos = offtargets[j]['var_pos']
        var_pos=999

        if no_bulge_offtarget_sequence != '':
            k = 0
            line_number += 1
            y = y_offset + line_number * box_size
            for i, (c, r) in enumerate(zip(no_bulge_offtarget_sequence, target_seq)):
                x = x_offset + k * box_size

                if r == '-':
                    if 0 < k < len(target_seq):
                        x = x_offset + (k - 0.25) * box_size
                        dwg.add(dwg.rect((x, box_size * 1.4 + y), (box_size*0.6, box_size*0.6), fill=colors[c]))
                        dwg.add(dwg.text(c, insert=(x+1, 2 * box_size + y - 2), fill='black', style="font-size:10px; font-family:Courier"))
                elif c == r:
                    dwg.add(dwg.text(".", insert=(x + 4.5, 2 * box_size + y - 4), fill='black', style="font-size:10px; font-family:Courier"))
                    k += 1
                elif r == 'N':
                    # dwg.add(dwg.text(c, insert=(x + 3, 2 * box_size + y - 3), fill='black', style="font-size:10px; font-family:Courier"))
                    dwg.add(dwg.text(c, insert=(x + 3, 2 * box_size + y - 3), fill='black', style="font-size:10px; font-family:Courier"))
                    k += 1
                else:
                    dwg.add(dwg.rect((x, box_size + y), (box_size, box_size), fill=colors[c]))
                    dwg.add(dwg.text(c, insert=(x+3, 2 * box_size + y - 3), fill='black', style="font-size:10px; font-family:Courier"))
                    k += 1
        if bulge_offtarget_sequence != '':
            k = 0
            line_number += 2
            y = y_offset + line_number * box_size
            for i, (c, r) in enumerate(zip(bulge_offtarget_sequence, realigned_target_seq)):
                x = x_offset + k * box_size

                if r == '-':
                    if 0 < k < len(realigned_target_seq):
                        x = x_offset + (k - 0.25) * box_size
                        dwg.add(dwg.rect((x, box_size * 1.4 + y), (box_size*0.6, box_size*0.6), fill=colors[c]))
                        dwg.add(dwg.text(c, insert=(x+1, 2 * box_size + y - 2), fill='black', style="font-size:10px; font-family:Courier"))
                elif c == r:
                    dwg.add(dwg.text(".", insert=(x + 4.5, 2 * box_size + y - 4), fill='black', style="font-size:10px; font-family:Courier"))
                    k += 1
                elif r == 'N':
                    dwg.add(dwg.text(c, insert=(x + 3, 2 * box_size + y - 3), fill='black', style="font-size:10px; font-family:Courier"))
                    k += 1
                else:
                    dwg.add(dwg.rect((x, box_size + y), (box_size, box_size), fill=colors[c]))
                    dwg.add(dwg.text(c, insert=(x+3, 2 * box_size + y - 3), fill='black', style="font-size:10px; font-family:Courier"))
                    k += 1

        if no_bulge_offtarget_sequence == '' or bulge_offtarget_sequence == '':
            reads_text = dwg.text(seq['reads'], insert=(box_size * (len(target_seq) + 1) + 20, y_offset + box_size * (line_number + 2) - 2),
                                  fill='black', style="font-size:10px; font-family:Courier")
            dwg.add(reads_text)


            if genome!= None:
                annot_text = dwg.text(seq['annot'], insert=(box_size * (len(target_seq) + 1) + 500, y_offset + box_size * (line_number + 2) - 2),
                                      fill='black', style="font-size:10px; font-family:Courier")
                dwg.add(annot_text)
        else:
            reads_text = dwg.text(str(seq['reads']), insert=(box_size * (len(target_seq) + 1) + 20, y_offset + box_size * (line_number + 1) + 5),
                                  fill='black', style="font-size:10px; font-family:Courier")
            dwg.add(reads_text)
            if genome!= None:
                annot_text = dwg.text(seq['annot'], insert=(box_size * (len(target_seq) + 1) + 500, y_offset + box_size * (line_number + 1) + 5),
                                      fill='black', style="font-size:10px; font-family:Courier")
                dwg.add(annot_text)
            reads_text02 = dwg.text(u"\u007D", insert=(box_size * (len(target_seq) + 1) + 7, y_offset + box_size * (line_number + 1) + 5),
                                  fill='black', style="font-size:23px; font-family:Courier")
            dwg.add(reads_text02)
    dwg.save()
# offtargets=[r.to_dict() for i,r in low.sample(n=10).sort_values("reads",ascending=False).iterrows()]
# visualizeOfftargets_variant_effect(offtargets,"AGTGCTTGAGCCCATTTCCTNGG", f"CHANGEseqR.MM{s}", f"CHANGEseqR.MM{s}", "NGG")

        # realigned_target_seq = offtargets[j]['realigned_target_seq']
        # no_bulge_offtarget_sequence = offtargets[j]['seq']
        # bulge_offtarget_sequence = offtargets[j]['bulged_seq']
        # target_seq = offtargets[j]['target_seq']
        # REF = offtargets[j]['REF']
        # ALT = offtargets[j]['ALT']
        # var_pos = offtargets[j]['var_pos']

for s,d in df_3.groupby(['site','MM','suprising_category']):
    d['reads'] = d.relative_activity_percent.astype(int).astype(str)+"_"+d.variant_relative_activity_percent.astype(int).astype(str)+"_"+d.delta_CFD.astype(int).astype(str)
    if d.shape[0]>20:
        offtargets=[r.to_dict() for i,r in d.sample(n=20).iterrows()]
    else:
        offtargets=[r.to_dict() for i,r in d.iterrows()]
    visualizeOfftargets_variant_effect(offtargets,d.target_seq.tolist()[0], f"{s[0]}.MM{s[1]}.{s[2]}", f"{s[0]}.MM{s[1]}.{s[2]}", "NGG")

visualizeOfftargets_seqvis_reads(offtargets,d.target_seq.tolist()[0],"test", "test", "NGG")

sns.barplot(data=merged[merged.suprising_category!="Skip"],hue="suprising_category",x="site",y="percentage")

<Axes: xlabel='site', ylabel='percentage'>

sns.barplot(data=merged[merged.suprising_category!="Skip"],hue="suprising_category",x="site",y="percentage")

<Axes: xlabel='site', ylabel='percentage'>

merged.groupby("suprising_category").percentage.mean()

suprising_category
Captured_high_impact       1.274
Captured_low_impact        1.976
Skip                      91.984
Surprising_high_impact     4.518
Surprising_increase        0.014
Surprising_low_impact      0.236
Name: percentage, dtype: float64

from Bio import motifs
from Bio.Seq import Seq

import logomaker
def tologo(m,s,outfile,title):
    X=pd.DataFrame.from_dict(m.pwm,orient="index").T
    for i in range(len(s)):
        if s[i]=="N":
            continue
        X.at[i,s[i]]=0
    df_normalized = X.div(X.sum(axis=1), axis=0)
    logo = logomaker.Logo(df_normalized,
                              shade_below=.5,
                              fade_below=.5)

    # style using Logo methods
    logo.style_spines(visible=False)
    logo.style_spines(spines=['left', 'bottom'], visible=True)
    logo.style_xticks(rotation=90, fmt='%d', anchor=0)

    # style using Axes methods
    logo.ax.set_ylabel("MisMatch Frequency", labelpad=-1)
    logo.ax.xaxis.set_ticks_position('none')
    logo.ax.xaxis.set_tick_params(pad=-1)
    logo.ax.set_title(title)
    logo.ax.set_xticks(range(23))  # adjust the number based on your data
    logo.ax.set_xticklabels(list(s), rotation=0)
    plt.savefig(outfile,bbox_inches='tight')

df2.head()

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Input In [33], in <cell line: 1>()
----> 1 df2.head()

NameError: name 'df2' is not defined

gRNA = {'AAVS1.s14': 'GGGGCCACTAGGGACAGGATNGG',
        'CTLA4.s9': 'GGACTGAGGGCCATGGACACNGG',
        'TRAC.s1': 'GTCAGGGTTCTGGATATCTGNGG',
        'LAG3.s9': 'GAAGGCTGAGATCCTGGAGGNGG',
        'CXCR4.s8': 'GTCCCCTGAGCCCATTTCCTNGG',
        'CCR5.s8': 'GGACAGTAAGAAGGAAAAACNGG'}
for s,d in df2.groupby("site"):
    size=d.shape[0]
    seq=gRNA[s]
    d=d[d.control_target_seq.str.len()==23]
    m = motifs.create([Seq(x) for x in d['control_target_seq']])
    # m.weblogo(f"{s}.CHANGE-seq-R.png",logo_title=f"N={size}")
    # from IPython.display import Image
    # Image(f"{s}.CHANGE-seq-R.png")

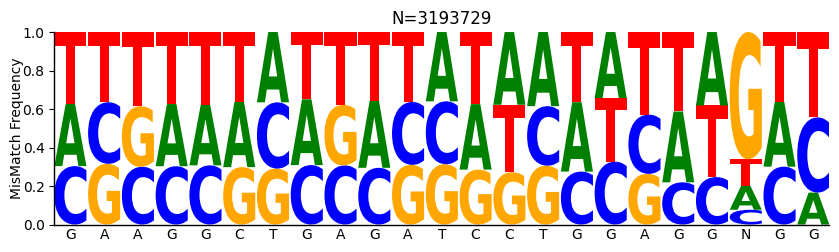

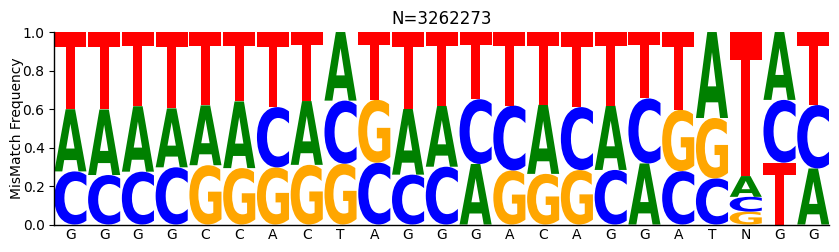

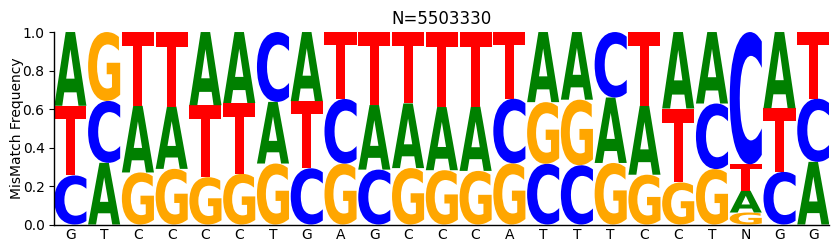

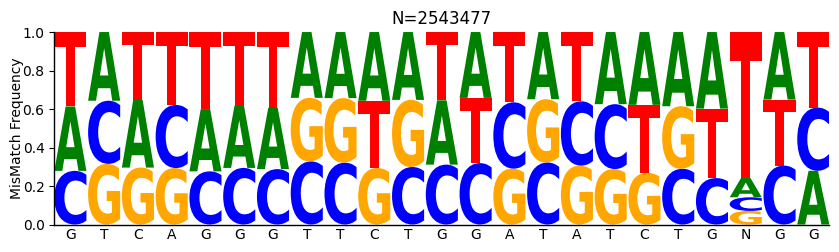

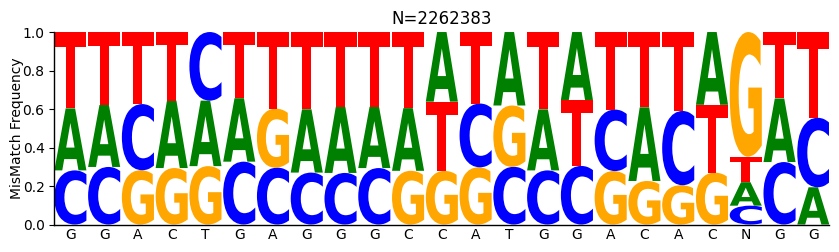

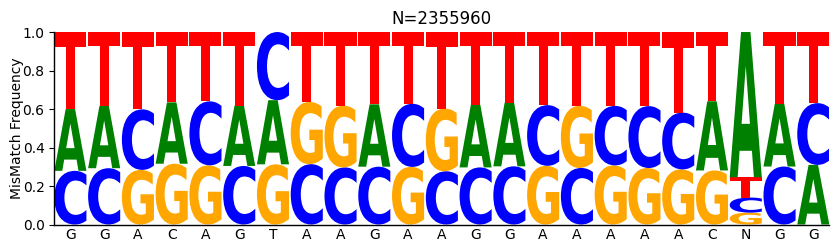

    tologo(m,seq,f"{s}.CHANGE-seq-R.seqlogo.png",f"N={d.shape[0]}")

df2

	Unnamed: 0	site	MM	control_target_seq	Cas9_counts_rep1	Cas9_counts_rep2	Cas9_counts_scaled_rep1	Cas9_counts_scaled_rep2	control_counts_rep1	control_counts_rep2	control_counts_scaled_rep1	control_counts_scaled_rep2	log2FC_rep1	log2FC_rep2	delta_log2FC	FC_rep1	FC_rep2	average_log2FC	spacer	PAM	relative_activity_percent
0	8000	AAVS1.s14	3	AGAGCCACTAGGAACAGGATCGG	736.0	516.0	61.769835	65.073526	3.0	3.0	0.104740	0.104740	9.206384	9.281429	-0.075044	589.741982	621.283672	9.244394	AGAGCCACTAGGAACAGGAT	CGG	1291.337166
1	79968	AAVS1.s14	3	TCGACCACTAGGGACAGGATGGG	130.0	93.0	10.910433	11.728368	1.0	1.0	0.034913	0.034913	8.292318	8.396291	-0.103973	312.499148	335.926636	8.345241	TCGACCACTAGGGACAGGAT	GGG	691.427396
2	1606	AAVS1.s14	2	GGGACCACTAGGGACAGGATGGT	88.0	65.0	7.385524	8.197246	1.0	1.0	0.034913	0.034913	7.731576	7.881343	-0.149767	211.537885	234.787434	7.808402	GGGACCACTAGGGACAGGAT	GGT	475.924247
3	384446	AAVS1.s14	4	TCCGCCACTAGGGACAGCATTGG	81.0	69.0	6.798039	8.701692	1.0	1.0	0.034913	0.034913	7.612581	7.967145	-0.354564	194.711008	249.235892	7.800728	TCCGCCACTAGGGACAGCAT	TGG	473.388098
4	7583	AAVS1.s14	2	TGGGCCACTAAGGACAGGATAGG	145.0	89.0	12.169329	11.223922	2.0	2.0	0.069827	0.069827	7.453504	7.337525	0.115980	174.278371	160.739089	7.396680	TGGGCCACTAAGGACAGGAT	AGG	357.234792
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
19121147	19121147	TRAC.s1	21	TGACTAAGGAACCCGGAAACAAG	0.0	0.0	0.000000	0.000000	3.0	3.0	0.118482	0.118482	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	TGACTAAGGAACCCGGAAAC	AAG	0.000000
19121148	19121148	TRAC.s1	21	TGACTAAGGGCGTTGGAAATGAC	0.0	0.0	0.000000	0.000000	1.0	1.0	0.039494	0.039494	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	TGACTAAGGGCGTTGGAAAT	GAC	0.000000
19121149	19121149	TRAC.s1	21	TGAGCCTAAGATCTTGGAGAGTT	0.0	0.0	0.000000	0.000000	15.0	15.0	0.592411	0.592411	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	TGAGCCTAAGATCTTGGAGA	GTT	0.000000
19121150	19121150	TRAC.s1	22	AGGCTTAGCGCCATGGAGATGTC	0.0	0.0	0.000000	0.000000	1.0	1.0	0.039494	0.039494	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	AGGCTTAGCGCCATGGAGAT	GTC	0.000000
19121151	19121151	TRAC.s1	22	TGTCTAAGGGATATGGATACGAT	0.0	0.0	0.000000	0.000000	13.0	13.0	0.513423	0.513423	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	TGTCTAAGGGATATGGATAC	GAT	0.000000

19121152 rows × 21 columns

for s,d in df2.groupby("site"):
    size=d.shape[0]
    d=d[d.control_target_seq.str.len()==23]
    m = motifs.create([Seq(x) for x in d['control_target_seq']])
    m.weblogo(f"{s}.CHANGE-seq-R.png",logo_title=f"N={size}")
    from IPython.display import Image
    Image(f"{s}.CHANGE-seq-R.png")

Image(f"{s}.CHANGE-seq-R.png")

# Group by site and surprising_category, then count
counts = df_3.groupby(['site', 'suprising_category']).size().reset_index(name='count')

# Get total per site
total_per_site = df_3.groupby('site').size().reset_index(name='total')

# Merge the counts with the totals
merged = counts.merge(total_per_site, on='site')

# Calculate the percentage
merged['percentage'] = merged['count'] / merged['total'] * 100

# Optional: format percentage to 2 decimal places
merged['percentage'] = merged['percentage'].round(2)
merged

	site	suprising_category	count	total	percentage
0	AAVS1.s14	Captured_high_impact	15567	793711	1.96
1	AAVS1.s14	Captured_low_impact	42342	793711	5.33
2	AAVS1.s14	Skip	674193	793711	84.94
3	AAVS1.s14	Surprising_high_impact	55450	793711	6.99
4	AAVS1.s14	Surprising_increase	321	793711	0.04
5	AAVS1.s14	Surprising_low_impact	5838	793711	0.74
6	CCR5.s8	Captured_high_impact	3315	527292	0.63
7	CCR5.s8	Captured_low_impact	3509	527292	0.67
8	CCR5.s8	Skip	511544	527292	97.01
9	CCR5.s8	Surprising_high_impact	8465	527292	1.61
10	CCR5.s8	Surprising_increase	59	527292	0.01
11	CCR5.s8	Surprising_low_impact	400	527292	0.08
12	CTLA4.s9	Captured_high_impact	8242	488245	1.69
13	CTLA4.s9	Captured_low_impact	4381	488245	0.90
14	CTLA4.s9	Skip	449138	488245	91.99
15	CTLA4.s9	Surprising_high_impact	26123	488245	5.35
16	CTLA4.s9	Surprising_increase	17	488245	0.00
17	CTLA4.s9	Surprising_low_impact	344	488245	0.07
18	LAG3.s9	Captured_high_impact	9962	634116	1.57
19	LAG3.s9	Captured_low_impact	15118	634116	2.38
20	LAG3.s9	Skip	565541	634116	89.19
21	LAG3.s9	Surprising_high_impact	41983	634116	6.62
22	LAG3.s9	Surprising_increase	64	634116	0.01
23	LAG3.s9	Surprising_low_impact	1448	634116	0.23
24	TRAC.s1	Captured_high_impact	3571	684641	0.52
25	TRAC.s1	Captured_low_impact	4081	684641	0.60
26	TRAC.s1	Skip	662697	684641	96.79
27	TRAC.s1	Surprising_high_impact	13856	684641	2.02
28	TRAC.s1	Surprising_increase	49	684641	0.01
29	TRAC.s1	Surprising_low_impact	387	684641	0.06

df

	site	MM	control_target_seq	relative_activity_percent	variant_seq	variant_relative_activity_percent	variant_MM	activity_diff	activity_ratio	mismatch_positions	variant_mismatch_positions	variant_position	var_pos	REF	ALT	target_seq	realigned_target_seq	seq	bulged_seq	reads	on_target	off	delta_CFD	abs_diff	ratio_CFD	ratio_activity	ratio_CFD_log2	ratio_activity_log2
7	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGAGACAGGTTCGG	20.008296	3	-173.089401	0.103617	[4, 19]	[4, 12, 19]	12	12	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGAGACAGGTTCGG		173.089401	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-3.230769	96.769231	0.934681	0.108236	-0.097454	-3.207752
9	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGATCACTAGGGACAGGTTCGG	8.696374	3	-184.401323	0.045036	[4, 19]	[4, 5, 19]	5	5	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGATCACTAGGGACAGGTTCGG		184.401323	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-17.622378	82.377622	0.643716	0.049956	-0.635505	-4.323194
10	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGTGACAGGTTCGG	2.381133	3	-190.716563	0.012331	[4, 19]	[4, 12, 19]	12	12	G	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGTGACAGGTTCGG		190.716563	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-29.822485	70.177515	0.397057	0.017420	-1.332582	-5.843132
11	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCATTAGGGACAGGTTCGG	4.460667	3	-188.637030	0.023101	[4, 19]	[4, 8, 19]	8	8	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCATTAGGGACAGGTTCGG		188.637030	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-6.057692	93.942308	0.877527	0.028134	-0.188484	-5.151562
12	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGAACACTAGGGACAGGTTCGG	2.885356	3	-190.212341	0.014942	[4, 19]	[4, 5, 19]	5	5	C	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGAACACTAGGGACAGGTTCGG		190.212341	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-20.769231	79.230769	0.580093	0.020018	-0.785643	-5.642592

sns.scatterplot(data=df[df.activity_diff.abs()>=10][['ratio_activity_log2','ratio_CFD_log2','site']],x="ratio_activity_log2",y="ratio_CFD_log2",hue="site")
plt.axvline(x=2, color='grey', linestyle='--')
plt.axvline(x=-2, color='grey', linestyle='--')
plt.axhline(y=-2, color='grey', linestyle='--')

<matplotlib.lines.Line2D at 0x155073ebf670>

sns.scatterplot(data=df[df.activity_diff.abs()>=10][['ratio_activity_log2','ratio_CFD_log2','site']].sample(n=10000),x="ratio_activity_log2",y="ratio_CFD_log2",hue="site")
plt.axvline(x=2, color='grey', linestyle='--')
plt.axvline(x=-2, color='grey', linestyle='--')
plt.axhline(y=-2, color='grey', linestyle='--')

<matplotlib.lines.Line2D at 0x155073ce5160>

sns.scatterplot(data=df[['activity_diff','delta_CFD','site']].sample(n=10000),x="activity_diff",y="delta_CFD",hue="site")

<Axes: xlabel='activity_diff', ylabel='delta_CFD'>

f="/research_jude/rgs01_jude/groups/tsaigrp/projects/Genomics/common/users/Jackie/CHANGE-seq-R-analysis/20250303_Ashley_CXCR4_250224_VH00889_244_AAGCHCVM5_oldpipeline/results_log2FC/combined_scaled_log1p_df_pivot_activity_20250325.csv"
df2 = pd.read_csv(f)

df2.head()

	Unnamed: 0	site	MM	control_target_seq	Cas9_counts_rep1	Cas9_counts_rep2	Cas9_counts_scaled_rep1	Cas9_counts_scaled_rep2	control_counts_rep1	control_counts_rep2	control_counts_scaled_rep1	control_counts_scaled_rep2	log2FC_rep1	log2FC_rep2	delta_log2FC	FC_rep1	FC_rep2	average_log2FC	spacer	PAM	relative_activity_percent
0	8000	AAVS1.s14	3	AGAGCCACTAGGAACAGGATCGG	736.0	516.0	61.769835	65.073526	3.0	3.0	0.104740	0.104740	9.206384	9.281429	-0.075044	589.741982	621.283672	9.244394	AGAGCCACTAGGAACAGGAT	CGG	1291.337166
1	79968	AAVS1.s14	3	TCGACCACTAGGGACAGGATGGG	130.0	93.0	10.910433	11.728368	1.0	1.0	0.034913	0.034913	8.292318	8.396291	-0.103973	312.499148	335.926636	8.345241	TCGACCACTAGGGACAGGAT	GGG	691.427396
2	1606	AAVS1.s14	2	GGGACCACTAGGGACAGGATGGT	88.0	65.0	7.385524	8.197246	1.0	1.0	0.034913	0.034913	7.731576	7.881343	-0.149767	211.537885	234.787434	7.808402	GGGACCACTAGGGACAGGAT	GGT	475.924247
3	384446	AAVS1.s14	4	TCCGCCACTAGGGACAGCATTGG	81.0	69.0	6.798039	8.701692	1.0	1.0	0.034913	0.034913	7.612581	7.967145	-0.354564	194.711008	249.235892	7.800728	TCCGCCACTAGGGACAGCAT	TGG	473.388098
4	7583	AAVS1.s14	2	TGGGCCACTAAGGACAGGATAGG	145.0	89.0	12.169329	11.223922	2.0	2.0	0.069827	0.069827	7.453504	7.337525	0.115980	174.278371	160.739089	7.396680	TGGGCCACTAAGGACAGGAT	AGG	357.234792

df2.site.unique()

array(['AAVS1.s14', 'CCR5.s8', 'CTLA4.s9', 'CXCR4.s8', 'LAG3.s9',
       'TRAC.s1'], dtype=object)

df2[df2.site=="CTLA4.s9"].groupby("MM").control_counts_rep1.describe().head()

	count	mean	std	min	25%	50%	75%	max
MM
0	4.0	2627.500000	3734.267041	626.0	711.50	829.0	2745.00	8226.0
1	264.0	396.174242	543.041610	2.0	80.75	146.0	369.75	2521.0
2	7006.0	78.626463	105.057933	1.0	12.00	37.0	97.00	924.0
3	65819.0	23.703216	27.764936	1.0	5.00	14.0	33.00	377.0
4	222382.0	13.459646	15.672668	1.0	3.00	8.0	18.00	208.0

df3 = df[(df.activity_diff<=-50)|(df.activity_diff>=20)]

sns.scatterplot(data=df3,x="activity_diff",y="delta_CFD",hue="site")

<Axes: xlabel='activity_diff', ylabel='delta_CFD'>

df.head()

	site	MM	control_target_seq	relative_activity_percent	variant_seq	variant_relative_activity_percent	variant_MM	activity_diff	activity_ratio	mismatch_positions	variant_mismatch_positions	variant_position	var_pos	REF	ALT	target_seq	realigned_target_seq	seq	bulged_seq	reads	on_target	off	delta_CFD
7	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGAGACAGGTTCGG	20.008296	3	-173.089401	0.103617	[4, 19]	[4, 12, 19]	12	12	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGAGACAGGTTCGG		173.089401	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-3.230769
9	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGATCACTAGGGACAGGTTCGG	8.696374	3	-184.401323	0.045036	[4, 19]	[4, 5, 19]	5	5	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGATCACTAGGGACAGGTTCGG		184.401323	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-17.622378
10	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGTGACAGGTTCGG	2.381133	3	-190.716563	0.012331	[4, 19]	[4, 12, 19]	12	12	G	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGTGACAGGTTCGG		190.716563	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-29.822485
11	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCATTAGGGACAGGTTCGG	4.460667	3	-188.637030	0.023101	[4, 19]	[4, 8, 19]	8	8	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCATTAGGGACAGGTTCGG		188.637030	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-6.057692
12	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGAACACTAGGGACAGGTTCGG	2.885356	3	-190.212341	0.014942	[4, 19]	[4, 5, 19]	5	5	C	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGAACACTAGGGACAGGTTCGG		190.212341	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-20.769231

def get_abs_diff(r):
    if r.activity_diff<=-100:
        change_seq_r_diff = -100
    else:
        change_seq_r_diff=r.activity_diff
    return r.delta_CFD-change_seq_r_diff

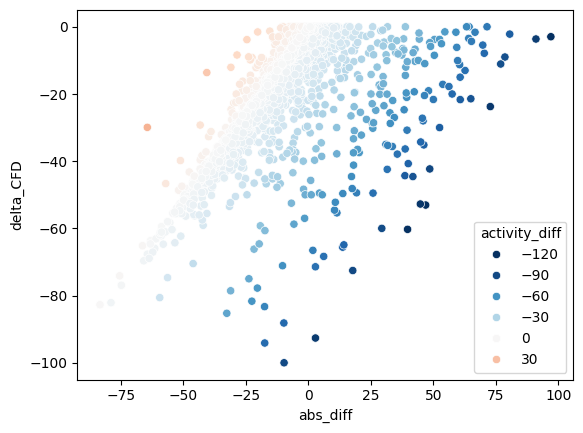

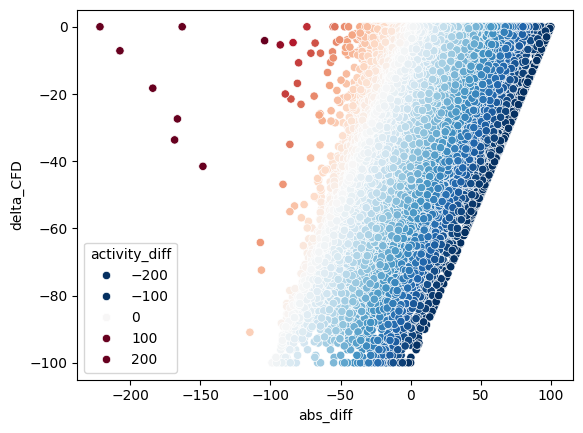

df['abs_diff'] = df.swifter.apply(get_abs_diff,axis=1)

?sns.scatterplot

Signature:
sns.scatterplot(
    data=None,
    *,
    x=None,
    y=None,
    hue=None,
    size=None,
    style=None,
    palette=None,
    hue_order=None,
    hue_norm=None,
    sizes=None,
    size_order=None,
    size_norm=None,
    markers=True,
    style_order=None,
    legend='auto',
    ax=None,
    **kwargs,
)
Docstring:
Draw a scatter plot with possibility of several semantic groupings.

The relationship between `x` and `y` can be shown for different subsets
of the data using the `hue`, `size`, and `style` parameters. These
parameters control what visual semantics are used to identify the different
subsets. It is possible to show up to three dimensions independently by
using all three semantic types, but this style of plot can be hard to
interpret and is often ineffective. Using redundant semantics (i.e. both
`hue` and `style` for the same variable) can be helpful for making
graphics more accessible.

See the :ref:`tutorial <relational_tutorial>` for more information.

The default treatment of the `hue` (and to a lesser extent, `size`)
semantic, if present, depends on whether the variable is inferred to
represent "numeric" or "categorical" data. In particular, numeric variables
are represented with a sequential colormap by default, and the legend
entries show regular "ticks" with values that may or may not exist in the
data. This behavior can be controlled through various parameters, as
described and illustrated below.

Parameters
----------
data : :class:`pandas.DataFrame`, :class:`numpy.ndarray`, mapping, or sequence
    Input data structure. Either a long-form collection of vectors that can be
    assigned to named variables or a wide-form dataset that will be internally
    reshaped.
x, y : vectors or keys in ``data``
    Variables that specify positions on the x and y axes.
hue : vector or key in `data`
    Grouping variable that will produce points with different colors.
    Can be either categorical or numeric, although color mapping will
    behave differently in latter case.
size : vector or key in `data`
    Grouping variable that will produce points with different sizes.
    Can be either categorical or numeric, although size mapping will
    behave differently in latter case.
style : vector or key in `data`
    Grouping variable that will produce points with different markers.
    Can have a numeric dtype but will always be treated as categorical.
palette : string, list, dict, or :class:`matplotlib.colors.Colormap`
    Method for choosing the colors to use when mapping the ``hue`` semantic.
    String values are passed to :func:`color_palette`. List or dict values
    imply categorical mapping, while a colormap object implies numeric mapping.
hue_order : vector of strings
    Specify the order of processing and plotting for categorical levels of the
    ``hue`` semantic.
hue_norm : tuple or :class:`matplotlib.colors.Normalize`
    Either a pair of values that set the normalization range in data units
    or an object that will map from data units into a [0, 1] interval. Usage
    implies numeric mapping.
sizes : list, dict, or tuple
    An object that determines how sizes are chosen when `size` is used.
    List or dict arguments should provide a size for each unique data value,
    which forces a categorical interpretation. The argument may also be a
    min, max tuple.
size_order : list
    Specified order for appearance of the `size` variable levels,
    otherwise they are determined from the data. Not relevant when the
    `size` variable is numeric.
size_norm : tuple or Normalize object
    Normalization in data units for scaling plot objects when the
    `size` variable is numeric.
markers : boolean, list, or dictionary
    Object determining how to draw the markers for different levels of the
    `style` variable. Setting to `True` will use default markers, or
    you can pass a list of markers or a dictionary mapping levels of the
    `style` variable to markers. Setting to `False` will draw
    marker-less lines.  Markers are specified as in matplotlib.
style_order : list
    Specified order for appearance of the `style` variable levels
    otherwise they are determined from the data. Not relevant when the
    `style` variable is numeric.
legend : "auto", "brief", "full", or False
    How to draw the legend. If "brief", numeric `hue` and `size`
    variables will be represented with a sample of evenly spaced values.
    If "full", every group will get an entry in the legend. If "auto",
    choose between brief or full representation based on number of levels.
    If `False`, no legend data is added and no legend is drawn.
ax : :class:`matplotlib.axes.Axes`
    Pre-existing axes for the plot. Otherwise, call :func:`matplotlib.pyplot.gca`
    internally.
kwargs : key, value mappings
    Other keyword arguments are passed down to
    :meth:`matplotlib.axes.Axes.scatter`.

Returns
-------
:class:`matplotlib.axes.Axes`
    The matplotlib axes containing the plot.

See Also
--------
lineplot : Plot data using lines.
stripplot : Plot a categorical scatter with jitter.
swarmplot : Plot a categorical scatter with non-overlapping points.

Examples
--------

.. include:: ../docstrings/scatterplot.rst
File:      ~/.conda/envs/jupyterlab_2024/lib/python3.8/site-packages/seaborn/relational.py
Type:      function

?sns.scatterplot

Signature:
sns.scatterplot(
    data=None,
    *,
    x=None,
    y=None,
    hue=None,
    size=None,
    style=None,
    palette=None,
    hue_order=None,
    hue_norm=None,
    sizes=None,
    size_order=None,
    size_norm=None,
    markers=True,
    style_order=None,
    legend='auto',
    ax=None,
    **kwargs,
)
Docstring:
Draw a scatter plot with possibility of several semantic groupings.

The relationship between `x` and `y` can be shown for different subsets
of the data using the `hue`, `size`, and `style` parameters. These
parameters control what visual semantics are used to identify the different
subsets. It is possible to show up to three dimensions independently by
using all three semantic types, but this style of plot can be hard to
interpret and is often ineffective. Using redundant semantics (i.e. both
`hue` and `style` for the same variable) can be helpful for making
graphics more accessible.

See the :ref:`tutorial <relational_tutorial>` for more information.

The default treatment of the `hue` (and to a lesser extent, `size`)
semantic, if present, depends on whether the variable is inferred to
represent "numeric" or "categorical" data. In particular, numeric variables
are represented with a sequential colormap by default, and the legend
entries show regular "ticks" with values that may or may not exist in the
data. This behavior can be controlled through various parameters, as
described and illustrated below.

Parameters
----------
data : :class:`pandas.DataFrame`, :class:`numpy.ndarray`, mapping, or sequence
    Input data structure. Either a long-form collection of vectors that can be
    assigned to named variables or a wide-form dataset that will be internally
    reshaped.
x, y : vectors or keys in ``data``
    Variables that specify positions on the x and y axes.
hue : vector or key in `data`
    Grouping variable that will produce points with different colors.
    Can be either categorical or numeric, although color mapping will
    behave differently in latter case.
size : vector or key in `data`
    Grouping variable that will produce points with different sizes.
    Can be either categorical or numeric, although size mapping will
    behave differently in latter case.
style : vector or key in `data`
    Grouping variable that will produce points with different markers.
    Can have a numeric dtype but will always be treated as categorical.
palette : string, list, dict, or :class:`matplotlib.colors.Colormap`
    Method for choosing the colors to use when mapping the ``hue`` semantic.
    String values are passed to :func:`color_palette`. List or dict values
    imply categorical mapping, while a colormap object implies numeric mapping.
hue_order : vector of strings
    Specify the order of processing and plotting for categorical levels of the
    ``hue`` semantic.
hue_norm : tuple or :class:`matplotlib.colors.Normalize`
    Either a pair of values that set the normalization range in data units
    or an object that will map from data units into a [0, 1] interval. Usage
    implies numeric mapping.
sizes : list, dict, or tuple
    An object that determines how sizes are chosen when `size` is used.
    List or dict arguments should provide a size for each unique data value,
    which forces a categorical interpretation. The argument may also be a
    min, max tuple.
size_order : list
    Specified order for appearance of the `size` variable levels,
    otherwise they are determined from the data. Not relevant when the
    `size` variable is numeric.
size_norm : tuple or Normalize object
    Normalization in data units for scaling plot objects when the
    `size` variable is numeric.
markers : boolean, list, or dictionary
    Object determining how to draw the markers for different levels of the
    `style` variable. Setting to `True` will use default markers, or
    you can pass a list of markers or a dictionary mapping levels of the
    `style` variable to markers. Setting to `False` will draw
    marker-less lines.  Markers are specified as in matplotlib.
style_order : list
    Specified order for appearance of the `style` variable levels
    otherwise they are determined from the data. Not relevant when the
    `style` variable is numeric.
legend : "auto", "brief", "full", or False
    How to draw the legend. If "brief", numeric `hue` and `size`
    variables will be represented with a sample of evenly spaced values.
    If "full", every group will get an entry in the legend. If "auto",
    choose between brief or full representation based on number of levels.
    If `False`, no legend data is added and no legend is drawn.
ax : :class:`matplotlib.axes.Axes`
    Pre-existing axes for the plot. Otherwise, call :func:`matplotlib.pyplot.gca`
    internally.
kwargs : key, value mappings
    Other keyword arguments are passed down to
    :meth:`matplotlib.axes.Axes.scatter`.

Returns
-------
:class:`matplotlib.axes.Axes`
    The matplotlib axes containing the plot.

See Also
--------
lineplot : Plot data using lines.
stripplot : Plot a categorical scatter with jitter.
swarmplot : Plot a categorical scatter with non-overlapping points.

Examples
--------

.. include:: ../docstrings/scatterplot.rst
File:      ~/.conda/envs/jupyterlab_2024/lib/python3.8/site-packages/seaborn/relational.py
Type:      function

sns.scatterplot(data=df.sample(n=1000000),x="abs_diff",y="delta_CFD",hue="activity_diff",palette="RdBu_r",hue_norm=(-100,100))

<Axes: xlabel='abs_diff', ylabel='delta_CFD'>

sns.scatterplot(data=df.sample(n=10000),x="abs_diff",y="delta_CFD",hue="activity_diff",palette="RdBu_r",hue_norm=(-100,100))

<Axes: xlabel='abs_diff', ylabel='delta_CFD'>

sns.distplot(df.abs_diff)

/lsf_tmp/248986378_1.tmpdir/ipykernel_1223482/864164568.py:1: UserWarning:

`distplot` is a deprecated function and will be removed in seaborn v0.14.0.

Please adapt your code to use either `displot` (a figure-level function with
similar flexibility) or `histplot` (an axes-level function for histograms).

For a guide to updating your code to use the new functions, please see
https://gist.github.com/mwaskom/de44147ed2974457ad6372750bbe5751

  sns.distplot(df.abs_diff)

<Axes: xlabel='abs_diff', ylabel='Density'>

df[df.abs_diff<-50]

	site	MM	control_target_seq	relative_activity_percent	variant_seq	variant_relative_activity_percent	variant_MM	activity_diff	activity_ratio	mismatch_positions	variant_mismatch_positions	variant_position	var_pos	REF	ALT	target_seq	realigned_target_seq	seq	bulged_seq	reads	on_target	off	delta_CFD	abs_diff
190	AAVS1.s14	3	TTGGCCACTAGGGACAGGTTTGG	121.891716	TTGGCCACTAGGGACAAGTTTGG	170.838335	4	48.946619	1.401558	[1, 2, 19]	[1, 2, 17, 19]	17	17	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	TTGGCCACTAGGGACAAGTTTGG		48.946619	GGGGCCACTAGGGACAGGATNGG	TTGGCCACTAGGGACAGGTTTGG	-2.284382	-51.231001
491	AAVS1.s14	1	GGGGCCACTAGGGGCAGGATCGG	109.546162	GGGACCACTAGGGGCAGGATCGG	157.668336	2	48.122174	1.439287	[14]	[4, 14]	4	4	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGGCAGGATCGG		48.122174	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGGCAGGATCGG	-4.666667	-52.788841
806	AAVS1.s14	1	GGGGCCACTAGGGACAGGTTCGG	105.462750	GGGACCACTAGGGACAGGTTCGG	193.097697	2	87.634947	1.830956	[19]	[4, 19]	4	4	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG		87.634947	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGTTCGG	-5.384615	-93.019562
807	AAVS1.s14	1	GGGGCCACTAGGGACAGGTTCGG	105.462750	GTGGCCACTAGGGACAGGTTCGG	150.083680	2	44.620930	1.423097	[19]	[2, 19]	2	2	G	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GTGGCCACTAGGGACAGGTTCGG		44.620930	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGTTCGG	-19.580420	-64.201349
1135	AAVS1.s14	2	AGGGCCACTAGGGACAGGTTTGG	102.230726	AAGGCCACTAGGGACAGGTTTGG	150.553124	3	48.322398	1.472680	[1, 19]	[1, 2, 19]	2	2	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	AAGGCCACTAGGGACAGGTTTGG		48.322398	GGGGCCACTAGGGACAGGATNGG	AGGGCCACTAGGGACAGGTTTGG	-7.455621	-55.778019
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
13541717	TRAC.s1	5	GTAAGAATTCTGAATATCTATGG	0.000000	GTAAGAATTCTGAATGTCTATGG	0.104366	6	0.104366	inf	[3, 6, 7, 13, 20]	[3, 6, 7, 13, 16, 20]	16	16	A	G	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTAAGAATTCTGAATGTCTATGG		0.104366	GTCAGGGTTCTGGATATCTGNGG	GTAAGAATTCTGAATATCTATGG	-60.576923	-60.681289
13541725	TRAC.s1	5	GTAAGAATTCTGGATATTTATGG	0.000000	GTAAGAATTCTGGATTTTTATGG	0.000000	6	0.000000	NaN	[3, 6, 7, 18, 20]	[3, 6, 7, 16, 18, 20]	16	16	A	T	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTAAGAATTCTGGATTTTTATGG		0.000000	GTCAGGGTTCTGGATATCTGNGG	GTAAGAATTCTGGATATTTATGG	-52.232143	-52.232143
13549448	TRAC.s1	5	GTCAAACTTCTAGATATCTATGG	0.000000	GTCAAACTTCTAGAGATCTATGG	1.880659	6	1.880659	inf	[5, 6, 7, 12, 20]	[5, 6, 7, 12, 15, 20]	15	15	T	G	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAAACTTCTAGAGATCTATGG		1.880659	GTCAGGGTTCTGGATATCTGNGG	GTCAAACTTCTAGATATCTATGG	-49.528646	-51.409304
13549538	TRAC.s1	5	GTCAAAGGTCTGAATATCTATGG	0.000000	GTCAAAGGTCTGAATATCTATGT	0.000000	6	0.000000	NaN	[5, 6, 8, 13, 20]	[5, 6, 8, 13, 20, 23]	23	23	G	T	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAAAGGTCTGAATATCTATGT		0.000000	GTCAGGGTTCTGGATATCTGNGG	GTCAAAGGTCTGAATATCTATGG	-54.112903	-54.112903
13555791	TRAC.s1	5	GTCACAGTCATGGATATCTATGG	0.000000	GTCACAGTCATGGATTTCTATGG	0.000000	6	0.000000	NaN	[5, 6, 9, 10, 20]	[5, 6, 9, 10, 16, 20]	16	16	A	T	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCACAGTCATGGATTTCTATGG		0.000000	GTCAGGGTTCTGGATATCTGNGG	GTCACAGTCATGGATATCTATGG	-58.928571	-58.928571

28295 rows × 24 columns

df[df.abs_diff>50]

	site	MM	control_target_seq	relative_activity_percent	variant_seq	variant_relative_activity_percent	variant_MM	activity_diff	activity_ratio	mismatch_positions	variant_mismatch_positions	variant_position	var_pos	REF	ALT	target_seq	realigned_target_seq	seq	bulged_seq	reads	on_target	off	delta_CFD	abs_diff
7	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGAGACAGGTTCGG	20.008296	3	-173.089401	0.103617	[4, 19]	[4, 12, 19]	12	12	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGAGACAGGTTCGG		173.089401	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-3.230769	96.769231
9	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGATCACTAGGGACAGGTTCGG	8.696374	3	-184.401323	0.045036	[4, 19]	[4, 5, 19]	5	5	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGATCACTAGGGACAGGTTCGG		184.401323	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-17.622378	82.377622
10	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGTGACAGGTTCGG	2.381133	3	-190.716563	0.012331	[4, 19]	[4, 12, 19]	12	12	G	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGTGACAGGTTCGG		190.716563	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-29.822485	70.177515
11	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCATTAGGGACAGGTTCGG	4.460667	3	-188.637030	0.023101	[4, 19]	[4, 8, 19]	8	8	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCATTAGGGACAGGTTCGG		188.637030	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-6.057692	93.942308
12	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGAACACTAGGGACAGGTTCGG	2.885356	3	-190.212341	0.014942	[4, 19]	[4, 5, 19]	5	5	C	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGAACACTAGGGACAGGTTCGG		190.212341	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-20.769231	79.230769
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
10764948	TRAC.s1	1	GTCAGGATTCTGGATATCTGAGG	55.040627	GTCAGGACTCTGGATATCTGAGG	4.909804	2	-50.130823	0.089203	[7]	[7, 8]	8	8	T	C	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAGGACTCTGGATATCTGAGG		50.130823	GTCAGGGTTCTGGATATCTGNGG	GTCAGGATTCTGGATATCTGAGG	0.000000	50.130823
10764995	TRAC.s1	1	GGCAGGGTTCTGGATATCTGGGG	54.406738	GGCAGAGTTCTGGATATCTGGGG	3.994802	2	-50.411937	0.073425	[2]	[2, 6]	6	6	G	A	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GGCAGAGTTCTGGATATCTGGGG		50.411937	GTCAGGGTTCTGGATATCTGNGG	GGCAGGGTTCTGGATATCTGGGG	0.000000	50.411937
10765049	TRAC.s1	1	GTCAAGGTTCTGGATATCTGAGG	54.077573	GTCAAAGTTCTGGATATCTGAGG	2.750119	2	-51.327454	0.050855	[5]	[5, 6]	6	6	G	A	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAAAGTTCTGGATATCTGAGG		51.327454	GTCAGGGTTCTGGATATCTGNGG	GTCAAGGTTCTGGATATCTGAGG	0.000000	51.327454
10765254	TRAC.s1	1	GTCAAGGTTCTGGATATCTGGGG	53.848331	GTCAAAGTTCTGGATATCTGGGG	2.514930	2	-51.333401	0.046704	[5]	[5, 6]	6	6	G	A	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAAAGTTCTGGATATCTGGGG		51.333401	GTCAGGGTTCTGGATATCTGNGG	GTCAAGGTTCTGGATATCTGGGG	0.000000	51.333401
10765458	TRAC.s1	2	GTCAGGGTACTGGATATCTATGG	52.780553	GTCAGAGTACTGGATATCTATGG	0.972426	3	-51.808126	0.018424	[9, 20]	[6, 9, 20]	6	6	G	A	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	GTCAGAGTACTGGATATCTATGG		51.808126	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTACTGGATATCTATGG	0.000000	51.808126

15830 rows × 24 columns

df2[df2.site=="LAG3.s9"].groupby("MM").control_counts_rep1.describe().head()

	count	mean	std	min	25%	50%	75%	max
MM
0	4.0	2748.750000	3638.893639	445.0	936.25	1184.5	2997.00	8181.0
1	262.0	433.305344	515.572321	5.0	110.75	202.5	490.75	3042.0
2	7298.0	73.103453	92.585903	1.0	13.25	35.0	96.00	1041.0
3	74356.0	20.551052	22.955063	1.0	5.00	13.0	28.00	340.0
4	282869.0	10.850659	11.548069	1.0	3.00	7.0	15.00	151.0

df.head()

	site	MM	control_target_seq	relative_activity_percent	variant_seq	variant_relative_activity_percent	variant_MM	activity_diff	activity_ratio	mismatch_positions	variant_mismatch_positions	variant_position	var_pos	REF	ALT	target_seq	realigned_target_seq	seq	bulged_seq	reads	on_target	off	delta_CFD
7	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGAGACAGGTTCGG	20.008296	3	-173.089401	0.103617	[4, 19]	[4, 12, 19]	12	12	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGAGACAGGTTCGG		173.089401	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-3.230769
9	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGATCACTAGGGACAGGTTCGG	8.696374	3	-184.401323	0.045036	[4, 19]	[4, 5, 19]	5	5	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGATCACTAGGGACAGGTTCGG		184.401323	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-17.622378
10	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCACTAGTGACAGGTTCGG	2.381133	3	-190.716563	0.012331	[4, 19]	[4, 12, 19]	12	12	G	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGTGACAGGTTCGG		190.716563	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-29.822485
11	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGACCATTAGGGACAGGTTCGG	4.460667	3	-188.637030	0.023101	[4, 19]	[4, 8, 19]	8	8	C	T	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCATTAGGGACAGGTTCGG		188.637030	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-6.057692
12	AAVS1.s14	2	GGGACCACTAGGGACAGGTTCGG	193.097697	GGGAACACTAGGGACAGGTTCGG	2.885356	3	-190.212341	0.014942	[4, 19]	[4, 5, 19]	5	5	C	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGAACACTAGGGACAGGTTCGG		190.212341	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG	-20.769231

df2[df2.control_target_seq=="TTGGCCACTAGGGACAGGTTTGG"]

	Unnamed: 0	site	MM	control_target_seq	Cas9_counts_rep1	Cas9_counts_rep2	Cas9_counts_scaled_rep1	Cas9_counts_scaled_rep2	control_counts_rep1	control_counts_rep2	control_counts_scaled_rep1	control_counts_scaled_rep2	log2FC_rep1	log2FC_rep2	delta_log2FC	FC_rep1	FC_rep2	average_log2FC	spacer	PAM	relative_activity_percent
63	83622	AAVS1.s14	3	TTGGCCACTAGGGACAGGTTTGG	1176.0	863.0	98.697454	108.83421	52.0	52.0	1.815501	1.815501	5.79087	5.929488	-0.138618	54.363757	59.947206	5.861843	TTGGCCACTAGGGACAGGTT	TGG	121.891716

df2[df2.control_target_seq=="TTGGCCACTAGGGACAAGTTTGG"]

	Unnamed: 0	site	MM	control_target_seq	Cas9_counts_rep1	Cas9_counts_rep2	Cas9_counts_scaled_rep1	Cas9_counts_scaled_rep2	control_counts_rep1	control_counts_rep2	control_counts_scaled_rep1	control_counts_scaled_rep2	log2FC_rep1	log2FC_rep2	delta_log2FC	FC_rep1	FC_rep2	average_log2FC	spacer	PAM	relative_activity_percent
21	406041	AAVS1.s14	4	TTGGCCACTAGGGACAAGTTTGG	176.0	149.0	14.771048	18.790611	6.0	6.0	0.209481	0.209481	6.160126	6.503044	-0.342918	70.512628	89.70084	6.34175	TTGGCCACTAGGGACAAGTT	TGG	170.838335

df2[df2.control_target_seq=="GAAGGTTGAGACCCTAGAGGAGG"]

	Unnamed: 0	site	MM	control_target_seq	Cas9_counts_rep1	Cas9_counts_rep2	Cas9_counts_scaled_rep1	Cas9_counts_scaled_rep2	control_counts_rep1	control_counts_rep2	control_counts_scaled_rep1	control_counts_scaled_rep2	log2FC_rep1	log2FC_rep2	delta_log2FC	FC_rep1	FC_rep2	average_log2FC	spacer	PAM	relative_activity_percent
13401809	13438688	LAG3.s9	3	GAAGGTTGAGACCCTAGAGGAGG	30.0	31.0	1.845778	1.740488	6.0	6.0	0.198311	0.198311	3.36562	3.289325	0.076295	9.307481	8.776546	3.327977	GAAGGTTGAGACCCTAGAGG	AGG	11.791731

df[df.activity_diff>0]

	site	MM	control_target_seq	relative_activity_percent	variant_seq	variant_relative_activity_percent	variant_MM	activity_diff	activity_ratio	mismatch_positions	variant_mismatch_positions	variant_position	var_pos	REF	ALT	target_seq	realigned_target_seq	seq	bulged_seq	reads	on_target	off	delta_CFD
190	AAVS1.s14	3	TTGGCCACTAGGGACAGGTTTGG	121.891716	TTGGCCACTAGGGACAAGTTTGG	170.838335	4	48.946619	1.401558	[1, 2, 19]	[1, 2, 17, 19]	17	17	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	TTGGCCACTAGGGACAAGTTTGG		48.946619	GGGGCCACTAGGGACAGGATNGG	TTGGCCACTAGGGACAGGTTTGG	-2.284382
350	AAVS1.s14	1	GGGGCCACTATGGACAGGATCGG	110.700418	AGGGCCACTATGGACAGGATCGG	131.758582	2	21.058165	1.190227	[11]	[1, 11]	1	1	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	AGGGCCACTATGGACAGGATCGG		21.058165	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTATGGACAGGATCGG	-3.846154
491	AAVS1.s14	1	GGGGCCACTAGGGGCAGGATCGG	109.546162	GGGACCACTAGGGGCAGGATCGG	157.668336	2	48.122174	1.439287	[14]	[4, 14]	4	4	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGGCAGGATCGG		48.122174	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGGCAGGATCGG	-4.666667
494	AAVS1.s14	1	GGGGCCACTAGGGGCAGGATCGG	109.546162	AGGGCCACTAGGGGCAGGATCGG	110.235641	2	0.689479	1.006294	[14]	[1, 14]	1	1	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	AGGGCCACTAGGGGCAGGATCGG		0.689479	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGGCAGGATCGG	-4.666667
806	AAVS1.s14	1	GGGGCCACTAGGGACAGGTTCGG	105.462750	GGGACCACTAGGGACAGGTTCGG	193.097697	2	87.634947	1.830956	[19]	[4, 19]	4	4	G	A	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGATNGG	GGGACCACTAGGGACAGGTTCGG		87.634947	GGGGCCACTAGGGACAGGATNGG	GGGGCCACTAGGGACAGGTTCGG	-5.384615
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
13679294	TRAC.s1	5	TTTCGGGTTCTGGTTATCTATGG	0.000000	TCTCGGGTTCTGGTTATCTATGG	0.292225	6	0.292225	inf	[1, 3, 4, 14, 20]	[1, 2, 3, 4, 14, 20]	2	2	T	C	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	TCTCGGGTTCTGGTTATCTATGG		0.292225	GTCAGGGTTCTGGATATCTGNGG	TTTCGGGTTCTGGTTATCTATGG	-1.733193
13679308	TRAC.s1	5	TTTGAGGTTCAGGATATCTGTGG	0.000000	TTTGAGGTTCAGGATATCTGTCG	0.253855	6	0.253855	inf	[1, 3, 4, 5, 11]	[1, 3, 4, 5, 11, 22]	22	22	G	C	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	TTTGAGGTTCAGGATATCTGTCG		0.253855	GTCAGGGTTCTGGATATCTGNGG	TTTGAGGTTCAGGATATCTGTGG	-24.937221
13679339	TRAC.s1	5	TTTTGAGTTCTGGATTTCTGTGG	0.000000	TTTTGAGTTATGGATTTCTGTGG	0.075467	6	0.075467	inf	[1, 3, 4, 6, 16]	[1, 3, 4, 6, 10, 16]	10	10	C	A	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	TTTTGAGTTATGGATTTCTGTGG		0.075467	GTCAGGGTTCTGGATATCTGNGG	TTTTGAGTTCTGGATTTCTGTGG	0.000000
13679352	TRAC.s1	5	TTTTGGGTTCTGGATATTGGTGG	0.000000	TTTTGGGTTCTGTATATTGGTGG	0.058634	6	0.058634	inf	[1, 3, 4, 18, 19]	[1, 3, 4, 13, 18, 19]	13	13	G	T	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	TTTTGGGTTCTGTATATTGGTGG		0.058634	GTCAGGGTTCTGGATATCTGNGG	TTTTGGGTTCTGGATATTGGTGG	-4.921875
13679354	TRAC.s1	5	TTTTGGGTTCTGGATCTCTATGG	0.000000	TTTTGGGGTCTGGATCTCTATGG	0.063527	6	0.063527	inf	[1, 3, 4, 16, 20]	[1, 3, 4, 8, 16, 20]	8	8	T	G	GTCAGGGTTCTGGATATCTGNGG	GTCAGGGTTCTGGATATCTGNGG	TTTTGGGGTCTGGATCTCTATGG		0.063527	GTCAGGGTTCTGGATATCTGNGG	TTTTGGGTTCTGGATCTCTATGG	0.000000

854102 rows × 23 columns

df[df.activity_diff<-200]

	site	MM	control_target_seq	relative_activity_percent	variant_seq	variant_relative_activity_percent	variant_MM	activity_diff	activity_ratio	mismatch_positions	variant_mismatch_positions	variant_position	var_pos	REF	ALT	target_seq	realigned_target_seq	seq	bulged_seq	reads	on_target	off	delta_CFD
8023465	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GAAGGTTGAGACCCTAGAGGAGG	11.791731	3	-268.021737	0.042141	[6, 16]	[6, 12, 16]	12	12	T	C	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGACCCTAGAGGAGG		268.021737	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-4.887218
8023467	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GAAGGTAGAGATCCTAGAGGAGG	10.071949	3	-269.741518	0.035995	[6, 16]	[6, 7, 16]	7	7	T	A	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTAGAGATCCTAGAGGAGG		269.741518	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-11.607143
8023468	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	TAAGGTTGAGATCCTAGAGGAGG	8.386182	3	-271.427285	0.029971	[6, 16]	[1, 6, 16]	1	1	G	T	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	TAAGGTTGAGATCCTAGAGGAGG		271.427285	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	0.000000
8023469	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GAAGGTGGAGATCCTAGAGGAGG	2.095282	3	-277.718186	0.007488	[6, 16]	[6, 7, 16]	7	7	T	G	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTGGAGATCCTAGAGGAGG		277.718186	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-38.235294
8023470	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GTAGGTTGAGATCCTAGAGGAGG	6.969863	3	-272.843605	0.024909	[6, 16]	[2, 6, 16]	2	2	A	T	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GTAGGTTGAGATCCTAGAGGAGG		272.843605	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-25.324675
8023471	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GAAGGTTGAGATCCTATAGGAGG	6.797364	3	-273.016104	0.024292	[6, 16]	[6, 16, 17]	17	17	G	T	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTATAGGAGG		273.016104	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-69.642857
8023472	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GAAGGTTAAGATCCTAGAGGAGG	5.726996	3	-274.086471	0.020467	[6, 16]	[6, 8, 16]	8	8	G	A	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTAAGATCCTAGAGGAGG		274.086471	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	0.000000
8023473	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GAAGGTTGAGATCCTACAGGAGG	4.752846	3	-275.060621	0.016986	[6, 16]	[6, 16, 17]	17	17	G	C	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTACAGGAGG		275.060621	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-71.008403
8023474	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GAAGGTTGGGATCCTAGAGGAGG	5.527540	3	-274.285928	0.019754	[6, 16]	[6, 9, 16]	9	9	A	G	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGGGATCCTAGAGGAGG		274.285928	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-30.952381
8023475	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GAAGGTTGAGATCCTAAAGGAGG	4.310561	3	-275.502907	0.015405	[6, 16]	[6, 16, 17]	17	17	G	A	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAAAGGAGG		275.502907	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-6.190476
8023476	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GAAGGTTGTGATCCTAGAGGAGG	3.880838	3	-275.932630	0.013869	[6, 16]	[6, 9, 16]	9	9	A	T	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGTGATCCTAGAGGAGG		275.932630	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-37.142857
8023477	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GACGGTTGAGATCCTAGAGGAGG	3.815962	3	-275.997506	0.013638	[6, 16]	[3, 6, 16]	3	3	A	C	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GACGGTTGAGATCCTAGAGGAGG		275.997506	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-53.061224
8023478	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GAAGGTTGAGATTCTAGAGGAGG	3.707332	3	-276.106135	0.013249	[6, 16]	[6, 13, 16]	13	13	C	T	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATTCTAGAGGAGG		276.106135	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-27.857143
8023479	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GATGGTTGAGATCCTAGAGGAGG	2.777671	3	-277.035796	0.009927	[6, 16]	[3, 6, 16]	3	3	A	T	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GATGGTTGAGATCCTAGAGGAGG		277.035796	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-27.310924
8023480	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GAAGTTTGAGATCCTAGAGGAGG	3.387855	3	-276.425612	0.012108	[6, 16]	[5, 6, 16]	5	5	G	T	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GAAGTTTGAGATCCTAGAGGAGG		276.425612	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-65.000000
8023481	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GAAGGTTGAGATCATAGAGGAGG	2.500840	3	-277.312628	0.008938	[6, 16]	[6, 14, 16]	14	14	C	A	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCATAGAGGAGG		277.312628	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-60.357143
8023482	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GAAGGTTGACATCCTAGAGGAGG	2.221278	3	-277.592190	0.007938	[6, 16]	[6, 10, 16]	10	10	G	C	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGACATCCTAGAGGAGG		277.592190	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-55.714286
8023483	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GAAGGTTGAGATCGTAGAGGAGG	0.664579	3	-279.148888	0.002375	[6, 16]	[6, 14, 16]	14	14	C	G	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCGTAGAGGAGG		279.148888	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-92.857143
8023484	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GAAGGTTGAGATCCGAGAGGAGG	1.490701	3	-278.322767	0.005327	[6, 16]	[6, 15, 16]	15	15	T	G	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCGAGAGGAGG		278.322767	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-88.214286
8023485	LAG3.s9	2	GAAGGTTGAGATCCTAGAGGAGG	279.813468	GAAGGTTGAGATCCTAGACGAGG	1.005184	3	-278.808284	0.003592	[6, 16]	[6, 16, 19]	19	19	G	C	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGACGAGG		278.808284	GAAGGCTGAGATCCTGGAGGNGG	GAAGGTTGAGATCCTAGAGGAGG	-51.231527
8023492	LAG3.s9	2	ATAGGCTGAGATCCTGGAGGCGG	269.530898	ATAGGCTGAGATCCTGGAGTCGG	65.892935	3	-203.637962	0.244473	[1, 2]	[1, 2, 20]	20	20	G	T	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGTCGG		203.637962	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGGCGG	-19.636364
8023493	LAG3.s9	2	ATAGGCTGAGATCCTGGAGGCGG	269.530898	ATAGGCTGAGATCCTGGAGGCAG	24.032526	3	-245.498372	0.089164	[1, 2]	[1, 2, 22]	22	22	G	A	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGGCAG		245.498372	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGGCGG	-48.484848
8023496	LAG3.s9	2	ATAGGCTGAGATCCTGGAGGCGG	269.530898	ATAGGATGAGATCCTGGAGGCGG	20.156988	3	-249.373910	0.074785	[1, 2]	[1, 2, 6]	6	6	C	A	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	ATAGGATGAGATCCTGGAGGCGG		249.373910	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGGCGG	-4.675325
8023497	LAG3.s9	2	ATAGGCTGAGATCCTGGAGGCGG	269.530898	ATAGGCTCAGATCCTGGAGGCGG	10.057149	3	-259.473749	0.037314	[1, 2]	[1, 2, 8]	8	8	G	C	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTCAGATCCTGGAGGCGG		259.473749	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGGCGG	-25.174825
8023498	LAG3.s9	2	ATAGGCTGAGATCCTGGAGGCGG	269.530898	ATAGGCTGAGATCCAGGAGGCGG	36.815412	3	-232.715486	0.136591	[1, 2]	[1, 2, 15]	15	15	T	A	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCAGGAGGCGG		232.715486	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGGCGG	-27.559809
8023499	LAG3.s9	2	ATAGGCTGAGATCCTGGAGGCGG	269.530898	ATAGGCTGAGATCCTGGAGGCTG	9.356937	3	-260.173961	0.034716	[1, 2]	[1, 2, 22]	22	22	G	T	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGGCTG		260.173961	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGGCGG	-62.904368
8023500	LAG3.s9	2	ATAGGCTGAGATCCTGGAGGCGG	269.530898	ATAGGCTGAGATCCTGTAGGCGG	19.593457	3	-249.937441	0.072695	[1, 2]	[1, 2, 17]	17	17	G	T	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGTAGGCGG		249.937441	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGGCGG	-49.090909
8023501	LAG3.s9	2	ATAGGCTGAGATCCTGGAGGCGG	269.530898	ATAGGCTGAGATCCCGGAGGCGG	17.578298	3	-251.952600	0.065218	[1, 2]	[1, 2, 15]	15	15	T	C	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCCGGAGGCGG		251.952600	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGGCGG	-47.603306
8023502	LAG3.s9	2	ATAGGCTGAGATCCTGGAGGCGG	269.530898	ATAGGCTGAGATCCTGGAGGCCG	1.924251	3	-267.606647	0.007139	[1, 2]	[1, 2, 22]	22	22	G	C	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGGCCG		267.606647	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGGCGG	-58.441558
8023504	LAG3.s9	2	ATAGGCTGAGATCCTGGAGGCGG	269.530898	ATAGGCTGAGATGCTGGAGGCGG	5.504538	3	-264.026360	0.020423	[1, 2]	[1, 2, 13]	13	13	C	G	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATGCTGGAGGCGG		264.026360	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGGCGG	-56.528926
8023505	LAG3.s9	2	ATAGGCTGAGATCCTGGAGGCGG	269.530898	ATAGGCTGAGATCATGGAGGCGG	15.847884	3	-253.683014	0.058798	[1, 2]	[1, 2, 14]	14	14	C	A	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCATGGAGGCGG		253.683014	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGGCGG	-42.545455
8023506	LAG3.s9	2	ATAGGCTGAGATCCTGGAGGCGG	269.530898	ATAGGCTGAGATCCTGGAGGCGC	8.342181	3	-261.188717	0.030951	[1, 2]	[1, 2, 23]	23	23	G	C	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGGCGC		261.188717	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGGCGG	-64.000000
8023507	LAG3.s9	2	ATAGGCTGAGATCCTGGAGGCGG	269.530898	ATAGGCTGTGATCCTGGAGGCGG	3.255658	3	-266.275240	0.012079	[1, 2]	[1, 2, 9]	9	9	A	T	GAAGGCTGAGATCCTGGAGGNGG	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGTGATCCTGGAGGCGG		266.275240	GAAGGCTGAGATCCTGGAGGNGG	ATAGGCTGAGATCCTGGAGGCGG	-26.181818

import pandas as pd

a = pd.read_csv("/home/yli11/dirs/MBNL1_Project_all_data_needed/yichao/bam_all/isoquant_bam_yli11_2025-04-09_b6e6d351c56d_isoQuant_isoseq_default_pacbio/OUT/40283.tsv",sep="\t",header=None)

a[5].unique()

array(['inconsistent_ambiguous', 'inconsistent', 'unique', 'ambiguous',
       'unique_minor_difference', 'inconsistent_non_intronic'],
      dtype=object)

for s,d in a.groupby(5):
    d[[0]].to_csv(f"/home/yli11/dirs/MBNL1_Project_all_data_needed/yichao/bam_all/ISOseq_bam/jj40283.{s}.list",index=False,header=False)

run_lsf.py -f bam.list --read_list BCL11A.ambiguous.read.list -p bam_read_list -j BCL11A.ambiguous.bam
run_lsf.py -f bam.list --read_list BCL11A.unique.read.list -p bam_read_list -j BCL11A.unique.bam

	0	1	2	3	4	5	6	7	8
0	a7cd1d6f-6220-4fe6-bd0b-1f5ab9086462	chr2	.	JingJing40283.chr2.nnic	ENSG00000119866.22	inconsistent_ambiguous	extra_intron_novel:60339735-60460293,extra_int...	60188485-60188490,60188736-60188746,60339713-6...	gene_assignment=inconsistent; PolyA=False; Cla...
1	d3e05f8e-f3f4-420f-b8a6-879972ad1ec7	chr2	+	JingJing40283.chr2.nnic	ENSG00000119866.22	inconsistent_ambiguous	extra_intron_novel:60266600-60460303,antisense	60266577-60266599,60460304-60460657	gene_assignment=inconsistent; PolyA=False; Cla...
2	be4383cd-e00a-4da8-b3c3-c98825936ee2	chr2	+	JingJing40283.chr2.nnic	ENSG00000119866.22	inconsistent_ambiguous	extra_intron_5:60268655-60284735,extra_intron_...	60268649-60268654,60284736-60284743,60448376-6...	gene_assignment=inconsistent; PolyA=False; Cla...
3	b6c13913-70b6-4833-912b-574e5b200a6e	chr2	+	JingJing40283.chr2.nnic	ENSG00000119866.22	inconsistent_ambiguous	extra_intron_novel:60273789-60460303,antisense	60273766-60273788,60460304-60460671	gene_assignment=inconsistent; PolyA=False; Cla...
4	39d36047-2077-4861-80b6-5d1387852cd7	chr2	+	JingJing40283.chr2.nnic	ENSG00000119866.22	inconsistent_ambiguous	extra_intron_novel:60281594-60460362,antisense	60281576-60281593,60460363-60460671	gene_assignment=inconsistent; PolyA=False; Cla...

for s,d in a.groupby(5):
    print (s)
    print (d.sample(n=100)[6].unique())

ambiguous
['mono_exonic' 'ism_5' 'ism_3,tss_match:-11' 'ism_5,exon_elongation_5:3'
 'mono_exonic,antisense']
inconsistent
['terminal_exon_shift_known:60546301-60550867'
 'alternative_structure_novel:60468812-60553532'
 'alternative_structure_novel:60460366-60553937,tss_match_precise:0,correct_polya_site_left:60458603,antisense'
 'alternative_structure_novel:60460390-60553524,tss_match_precise:0,correct_polya_site_left:60458603,antisense'
 'alternative_structure_novel:60468834-60490508,tes_match_precise:0,correct_polya_site_left:60458603'
 'exon_gain_novel:60468834-60469801,60469865-60538380,tss_match:-3'
 'alternative_structure_novel:60461289-60553537,antisense'
 'terminal_exon_shift_known:60546301-60550867,exon_elongation_3:3'
 'extra_intron_novel:60461400-60461742,terminal_exon_shift_known:60546301-60550867'
 'terminal_exon_shift_known:60546301-60552497'
 'terminal_exon_shift_known:60546301-60552497,exon_elongation_3:4'
 'alternative_structure_novel:60460390-60553516,alternative_polya_site_left:60458654'
 'extra_intron_novel:60553460-60553515'
 'extra_intron_novel:60459027-60459109,tes_match_precise:0,correct_polya_site_left:60458603'
 'terminal_exon_shift_known:60546301-60550867,exon_elongation_3:4'
 'extra_intron_novel:60553394-60554839,extra_intron_5:60554966-60555025'
 'alternative_structure_novel:60460341-60553559,tes_match_precise:0,correct_polya_site_left:60458603'
 'alternative_structure_novel:60460338-60553557,tes_match_precise:0,correct_polya_site_left:60458603'
 'extra_intron_novel:60459266-60459318,tes_match_precise:0,correct_polya_site_left:60458603'
 'exon_gain_novel:60468834-60502222,60502351-60538380,terminal_exon_shift_known:60546301-60550867'
 'extra_intron_novel:60460346-60461830,tes_match_precise:0,correct_polya_site_left:60458603'
 'extra_intron_novel:60461268-60461619,terminal_exon_shift_known:60546301-60550867'
 'alternative_structure_novel:60461915-60553539'
 'extra_intron_novel:60459639-60460318,tss_match_precise:0,correct_polya_site_left:60458603,antisense'
 'alternative_structure_novel:60519168-60538380,tss_match:-5'
 'alternative_structure_novel:60460390-60553518,tss_match_precise:0,correct_polya_site_left:60458603,antisense'
 'alternative_structure_novel:60468783-60553553'
 'alternative_structure_novel:60460630-60546213,extra_intron_novel:60553460-60553515'
 'extra_intron_novel:60461394-60461606'
 'extra_intron_novel:60460381-60461809,major_exon_elongation_5:59'
 'extra_intron_novel:60461394-60461590,extra_intron_novel:60553460-60553515'
 'extra_intron_novel:60460742-60461833,terminal_exon_shift_known:60546301-60550867'
 'extra_intron_novel:60460328-60462130,alternative_structure_novel:60462425-60490508,tes_match_precise:0,correct_polya_site_left:60458603'
 'intron_alternation_novel:60546124-60553475,tss_match_precise:0'
 'alternative_structure_novel:60460283-60538840,tes_match_precise:0,correct_polya_site_left:60458603'
 'extra_intron_novel:60460464-60462341,tss_match:-6'
 'alternative_structure_novel:60461282-60553634,antisense'
 'alternative_structure_novel:60460333-60553292,tes_match_precise:0,major_exon_elongation_5:142,correct_polya_site_left:60458603'
 'alternative_structure_novel:60461810-60553634'
 'alt_acceptor_site_novel:60460717-60468731,terminal_exon_shift_known:60546301-60550867'
 'extra_intron_novel:60553454-60553538,extra_intron_5:60554036-60554244,extra_intron_5:60553809-60553913'
 'extra_intron_novel:60459753-60460246,alternative_structure_novel:60460341-60553529,tes_match_precise:0,correct_polya_site_left:60458603'
 'exon_gain_novel:60468834-60508605,60508825-60538380,terminal_exon_shift_known:60546301-60550867'
 'alternative_structure_novel:60487482-60508605,60508825-60538380'
 'alternative_structure_novel:60461655-60537387,extra_intron_known:60553394-60553877'
 'alternative_structure_novel:60460221-60553731,extra_intron_3:60553957-60553996,tss_match_precise:0,correct_polya_site_left:60458603,antisense'
 'extra_intron_novel:60460327-60460383,tss_match_precise:0,correct_polya_site_left:60458603,antisense'
 'alternative_structure_novel:60475279-60478163,60478240-60538380,tss_match:-2'
 'extra_intron_novel:60460354-60461803,tes_match_precise:0,correct_polya_site_left:60458603'
 'alternative_structure_novel:60460390-60553553,tss_match_precise:0,correct_polya_site_left:60458603,antisense'
 'alternative_structure_novel:60460379-60553514,tss_match_precise:0,correct_polya_site_left:60458603,antisense'
 'alternative_structure_novel:60468812-60553552']
inconsistent_ambiguous
['alternative_structure_novel:60460845-60553277,tss_match:-4'
 'incomplete_intron_retention_3:60538550-60545970,tss_match:-2'
 'alternative_structure_novel:60461190-60553305,tes_match:-1,antisense'
 'extra_intron_novel:60460154-60460190,alternative_polya_site_left:60459264,antisense'
 'mono_exonic,alternative_polya_site_left:60459262'
 'alternative_structure_novel:60468812-60553521'
 'extra_intron_novel:60460918-60461110,antisense'
 'incomplete_intron_retention_3:60538550-60545970,extra_intron_novel:60553454-60553538'
 'mono_exonic,alternative_polya_site_left:60460285'
 'incomplete_intron_retention_3:60538550-60545970'
 'alternative_structure_novel:60460656-60523470'
 'incomplete_intron_retention_5:60546301-60553215,tes_match:-4,antisense'
 'alternative_structure_novel:60462425-60518469'
 'alternative_structure_novel:60461383-60553336,extra_intron_novel:60553367-60553877'
 'alternative_structure_novel:60461099-60553317,tes_match:-1,antisense'
 'incomplete_intron_retention_3:60538550-60545970,tss_match:-4'
 'extra_intron_novel:60460989-60461032'
 'alternative_structure_novel:60461110-60553788,antisense'
 'alternative_structure_novel:60461199-60553313,tss_match:-7'
 'alternative_structure_novel:60460858-60553430,tes_match:-6,antisense'
 'extra_intron_novel:60461220-60461744'
 'extra_intron_novel:60460711-60461092'
 'incomplete_intron_retention_3:60538550-60545970,tss_match:-5'
 'alternative_structure_novel:60461347-60553344,tes_match:-7,antisense'
 'incomplete_intron_retention_3:60538550-60545970,tss_match:-3'
 'alternative_structure_novel:60461319-60553310,tes_match:-7,antisense'
 'incomplete_intron_retention_3:60538550-60545970,tss_match_precise:0'
 'incomplete_intron_retention_5:60546301-60553215,tes_match:-8,antisense'
 'alternative_structure_novel:60462153-60553238,tes_match:-4,antisense'
 'alternative_structure_novel:60468834-60531079'
 'extra_intron_novel:60460337-60460372'
 'alternative_structure_novel:60462425-60531079'
 'incomplete_intron_retention_5:60546301-60553215,tes_match:-6,antisense'
 'alternative_structure_novel:60468847-60545970,extra_intron_novel:60553454-60553538'
 'alternative_structure_novel:60460938-60553292,tss_match:-14'
 'alternative_structure_novel:60461285-60553285,tes_match:-3,antisense'
 'mono_exonic,alternative_polya_site_left:60459278'
 'alternative_structure_novel:60460587-60462602'
 'alternative_structure_novel:60460908-60550877'
 'mono_exonic,alternative_polya_site_left:60458285'
 'alternative_structure_novel:60468834-60516426,60516504-60553535'
 'mono_exonic,alternative_polya_site_left:60459258'
 'alternative_structure_novel:60461052-60553293,tes_match:-3,antisense'
 'alternative_structure_novel:60462425-60553285,tss_match:-1'
 'alternative_structure_novel:60461345-60553315,tes_match:-2,antisense'
 'alternative_structure_novel:60461208-60553215,tss_match:-4'
 'alternative_structure_novel:60461293-60553285,tss_match:-3'
 'alternative_structure_novel:60460630-60546213,tss_match:-6'
 'incomplete_intron_retention:60462425-60468731'
 'mono_exonic,alternative_polya_site_left:60460462'
 'alt_donor_site_novel:60468834-60538039,tss_match:-11'
 'mono_exonic,alternative_polya_site_left:60458666'
 'alternative_structure_novel:60460878-60553372,tes_match:-3,antisense'
 'mono_exonic,alternative_polya_site_left:60460289'
 'extra_intron_novel:60460920-60461113,extra_intron_novel:60461220-60461792'
 'incomplete_intron_retention_3:60538550-60545970,tss_match:-6'
 'incomplete_intron_retention_3:60538550-60545970,tss_match:-1'
 'alternative_structure_novel:60460664-60516142'
 'alternative_structure_novel:60461241-60553237,tes_match:-5,antisense'
 'mono_exonic,alternative_polya_site_left:60458654'
 'alternative_structure_novel:60461287-60553287,tes_match:-1,antisense'
 'alternative_structure_novel:60460878-60553227,tes_match:-7,antisense'
 'incomplete_intron_retention_5:60546301-60553215,tes_match:-3,antisense'
 'alternative_structure_novel:60461254-60553277,tss_match:-9'
 'alternative_structure_novel:60461157-60553301,tes_match:-1,antisense'
 'alternative_structure_novel:60462143-60554336'
 'alternative_structure_novel:60460842-60553238,tes_match:-3,antisense'
 'extra_intron_novel:60460549-60460576'
 'alternative_structure_novel:60460759-60541333,antisense'
 'alternative_structure_novel:60461208-60553215,tss_match:-10'
 'extra_intron_novel:60460842-60461189,antisense'
 'alternative_structure_novel:60462425-60516426'
 'alternative_structure_novel:60461295-60553280,tss_match:-20'
 'extra_intron_novel:60460858-60462293,antisense'
 'alternative_structure_novel:60461133-60553326'
 'incomplete_intron_retention_5:60546301-60553215,tes_match:-11,antisense'
 'alternative_structure_novel:60461352-60553317,tss_match:-18'
 'alternative_structure_novel:60461208-60553393,tss_match:-4'
 'alternative_structure_novel:60461590-60553346,tes_match:-4,antisense'
 'alternative_structure_novel:60461295-60553295,tss_match:-3'
 'alternative_structure_novel:60462425-60518469,60519168-60530371'
 'extra_intron_novel:60461064-60461645'
 'mono_exonic,alternative_polya_site_left:60459148'
 'alternative_structure_novel:60462425-60530371'
 'alternative_structure_novel:60461352-60553310,tss_match:-17'
 'alternative_structure_novel:60460711-60553241,tss_match:-12'
 'extra_intron_novel:60460322-60460379,antisense'
 'alternative_structure_novel:60461287-60553288,tes_match:-7,antisense']
inconsistent_non_intronic
['major_exon_elongation_5:127' 'major_exon_elongation_5:623'
 'major_exon_elongation_5:120' 'major_exon_elongation_5:142'
 'major_exon_elongation_5:139' 'major_exon_elongation_5:138'
 'major_exon_elongation_5:141' 'major_exon_elongation_5:146'
 'major_exon_elongation_5:1543' 'major_exon_elongation_5:601'
 'major_exon_elongation_5:90' 'major_exon_elongation_5:117'
 'major_exon_elongation_5:88' 'major_exon_elongation_5:79'
 'major_exon_elongation_5:56' 'major_exon_elongation_5:157'
 'major_exon_elongation_5:128' 'major_exon_elongation_5:113'
 'major_exon_elongation_5:126' 'major_exon_elongation_5:129'
 'major_exon_elongation_5:136' 'major_exon_elongation_5:59'
 'major_exon_elongation_5:84' 'major_exon_elongation_5:199'
 'major_exon_elongation_5:71' 'major_exon_elongation_5:122'
 'exon_elongation_3:12,major_exon_elongation_5:57'
 'exon_elongation_3:12,major_exon_elongation_5:142'
 'major_exon_elongation_5:132']
unique
['mono_exonic,tes_match_precise:0,correct_polya_site_left:60458603'
 'mono_exonic,tes_match:21,correct_polya_site_left:60458580'
 'mono_exonic,tes_match:-31,correct_polya_site_left:60458631'
 'fsm,tss_match:-4' 'fsm' 'ism_5'
 'mono_exonic,tes_match_precise:0,correct_polya_site_left:60458620'
 'mono_exonic,tes_match:-26,correct_polya_site_left:60458627'
 'mono_exonic,tes_match:-1,correct_polya_site_left:60458620'
 'mono_exonic,tes_match_precise:0,correct_polya_site_left:60458631'
 'mono_exonic,tes_match:-25,correct_polya_site_left:60458625']
unique_minor_difference
['mono_exonic,tes_match_precise:0,exon_elongation_5:4,correct_polya_site_left:60458603'
 'mono_exonic,tes_match_precise:0,exon_elongation_5:3,correct_polya_site_left:60458620'
 'mono_exonic,tes_match_precise:0,exon_elongation_5:1,correct_polya_site_left:60458603'
 'ism_5,exon_elongation_5:3' 'ism_internal,exon_elongation_5:3'
 'fsm,exon_elongation_5:1'
 'mono_exonic,tes_match_precise:0,exon_elongation_5:3,correct_polya_site_left:60458603'
 'ism_5,exon_elongation_5:1' 'ism_internal,exon_elongation_3:13'
 'mono_exonic,tes_match:-26,exon_elongation_5:3,correct_polya_site_left:60458627'
 'fsm,exon_elongation_3:1,tss_match:-1'
 'ism_3,exon_elongation_3:13,tss_match:-9'
 'ism_3,exon_elongation_3:4,tss_match:-5'
 'mono_exonic,tes_match_precise:0,exon_elongation_5:1,correct_polya_site_left:60458620'
 'ism_internal,exon_elongation_3:5,exon_elongation_5:3'
 'ism_3,exon_elongation_3:13,tss_match:-4'
 'fsm,tss_match:47,exon_elongation_5:47'
 'fsm,tss_match:10,exon_elongation_5:10'
 'ism_3,exon_elongation_3:12,tss_match_precise:0'
 'fsm,exon_elongation_3:3,tss_match:-6'
 'fsm,tss_match:15,exon_elongation_5:15'
 'mono_exonic,tes_match_precise:0,exon_elongation_5:2,correct_polya_site_left:60458603'
 'ism_3,exon_elongation_3:12,tss_match:-3']

mono_exonic
