Differential exon analysis¶
usage: DEXseq.py [-h] [-j JID] -f BAM_TSV -d DESIGN_MATRIX [--cores CORES]
[--src SRC] [--count_cutoff COUNT_CUTOFF] [-g GENOME]
[-gff GFF]
optional arguments:
-h, --help show this help message and exit
-j JID, --jid JID enter a job ID, which is used to make a new directory.
Every output will be moved into this folder. (default:
DEXseq_yli11_2022-05-20)
-f BAM_TSV, --bam_tsv BAM_TSV
TSV file, 3 columns, bam file, sample name, group name
(default: None)
-d DESIGN_MATRIX, --design_matrix DESIGN_MATRIX
TSV file, 3 columns, group ID, group ID, output_prefix
(default: None)
--cores CORES Number of CPUs (default: 10)
--src SRC DEX src (default:
/home/yli11/Programs/DEXSeq/inst/python_scripts)
--count_cutoff COUNT_CUTOFF
filter exons by sum read count, more samples should
increase this cutoff (default: 10)
Genome Info:
-g GENOME, --genome GENOME
genome version: hg19, hg38, mm9, mm10 (default: hg19)
-gff GFF DEXseq gff file (default: /home/yli11/Programs/DEXSeq/
inst/python_scripts/gencode.v30.hg19.noagg.gff)
Summary¶
Differential exon analysis to identify exon skip events.
5/20/2022
Only works for hg19.
Only works for paired-end RNA-seq data.
Input¶
Example data dir: Projects/Siqi_data/RNAseq_data/Differential_Exon_Analysis/test
1. bam.tsv¶
Please copy (or softlink) position sorted and indexed bam files into your working dir. Prepare bam.tsv
as a 3-column tsv file: bam_file_name, sample_name, group_name. Example shown below:
2393109_Nontarget_Hudep2_1_S140_L003.markdup.bam.chr21.bam C1 control
2393111_M1_1_Hudep2_S142_L003.markdup.bam.chr21.bam K1 KO
2393113_M1_2_Hudep2_2_S144_L003.markdup.bam.chr21.bam K2 KO
2393110_Nontarget_Hudep2_2_S141_L003.markdup.bam.chr21.bam C2 control
2. design matrix¶
This is similar to peak_call.tsv. The columns are group 1, group 2, output prefix.
KO control myOut
Each line will be used as a comparison. For example, if you have three groups and possibly 3 comparisons (e.g., 1 vs 2, 1 vs 3, and 2 vs 3), then you can write down the comparisons in three lines. Again, this is same as the peak_call.tsv.
Usage¶
hpcf_interactive
module load python/2.7.13
DEXseq.py -f bam.tsv -d design.tsv
Output¶
Results are stored in the $jid folder.
.out
files are exon read counts; these are inputs to DEXseq program.

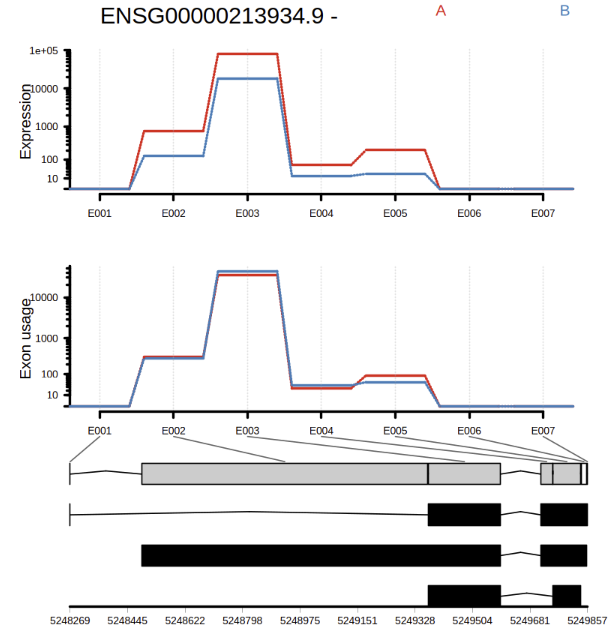

.png
files showing mean-variance, MA plot, and p-value distribution.
.csv
files are the final outputs, containing p-value and fold change, just as different gene expression data.
_results
folder contains some HTML results summary.
